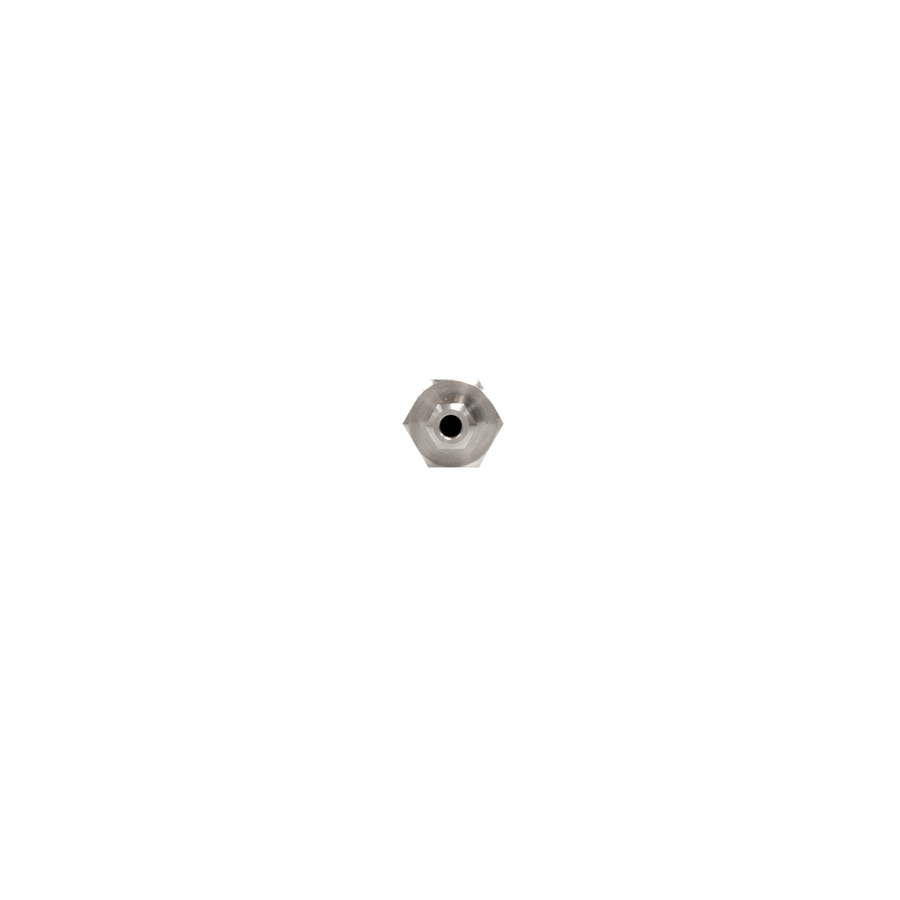

Fittings allow the temperature probe to be fixed to the measuring point and, if necessary, adjust its immersion depth.
They are available with different internal diameters and different types of threads. Sliding versions also available.
- DimensionsSee datasheet for complete code
- MaterialAISI304 - AISI316L
- WeightApprox. 100..200 g
- Operating pressure20 bar (-100..300°C)
- Operating conditionsTemperature -100..500 °C
- CertificationsCE
- 2000.30.007BAYONET FITTING 1/4 GAS MA WITH SPRING
- 2000.30.026BAYONET FITTING M12X1.5 MB WITH SPRING
- 2000.30.028BAYONET FITTING M12X1.75 MA WITH SPRING
- 2000.30.032FITTING 1/4 GAS MA > 1/4 NPT FE Tropicalised iron
- 2000.30.042FITTING M5x7 > canula conn. d4.5mm Tropicalised iron

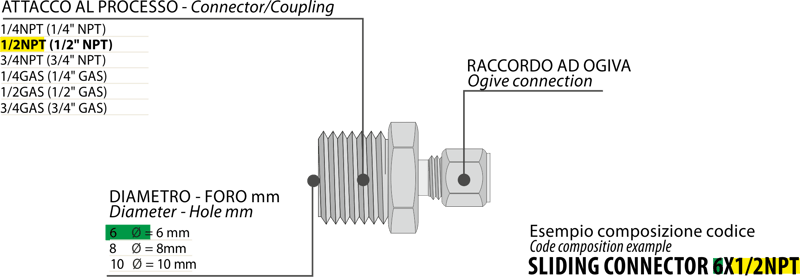

- 2000.30.052SLIDING FITTING 12X1/2 GAS d12mm BRASS NOSEPIECE
- 2000.30.029SLIDING FITTING 21X3/4 GAS
- 2000.30.057SLIDING FITTING 3X1/8 GAS AISI316
- 2000.30.014SLIDING FITTING 4.5X1/4
- 2000.30.011SLIDING FITTING 4X1/4
- 2000.30.010SLIDING FITTING 4X1/8 GAS BRASS
- 2000.30.009SLIDING FITTING 6X1/2 GAS AISI 316L
- 2000.30.006SLIDING FITTING 6X1/4 GAS AISI 316L
- 2000.30.027SLIDING FITTING 6X1/4 NPT AISI 316L
- 2000.30.003SLIDING FITTING 6X1/8 AISI 316L
- 2000.30.049SLIDING FITTING 6X12 NPT AISL 316
- 2000.30.035SLIDING FITTING 6X3/8 AISI 316L
- 2000.30.034SLIDING FITTING 8X1" NPT
- 2000.30.008SLIDING FITTING 8X1/2 GAS AISI 316L
- 2000.30.038SLIDING FITTING 8X1/4 GAS
