Melt pressure sensor without filling material, robust and high-precision, available for measuring ranges up to 10,000/ 700 bar. The absence of filling reduces measurement error margins.
The Inconel diaphragm with a protective coating is designed to resist abrasive materials, slag and residues typical in the plastics processing, for increased durability.
Models are available with 3.3mV/V strain gage output or amplified 4...20mA , 0...10Volt, i. Operating temperatures depend on version and are up to 400°C.
|

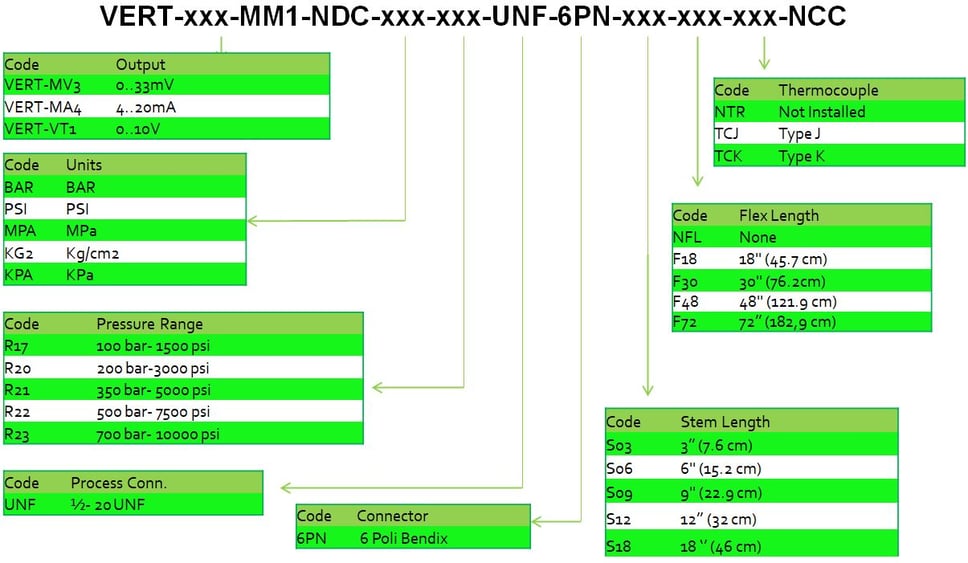

ORDERING CODES |
|
|---|---|
|
Accuracy @ 25°C |
+/- 0,5% FS |
|
Sensor type |
Inconel |
|
Diaphragm Temperature |
350 °C (For Rigid) - 400 °C (for Flex) |
|
Analogue output |
3,33 mV/V - 4..20mA - 0..10 V DC |
| Power supply |
2-Wire Connection - 16...30 V DC |
| Connector |
6 pin o Hirschmann |
|
Process connection |
1/2-20 UNF - M14 - M18 - M22 |
| Certifications |
CE |
