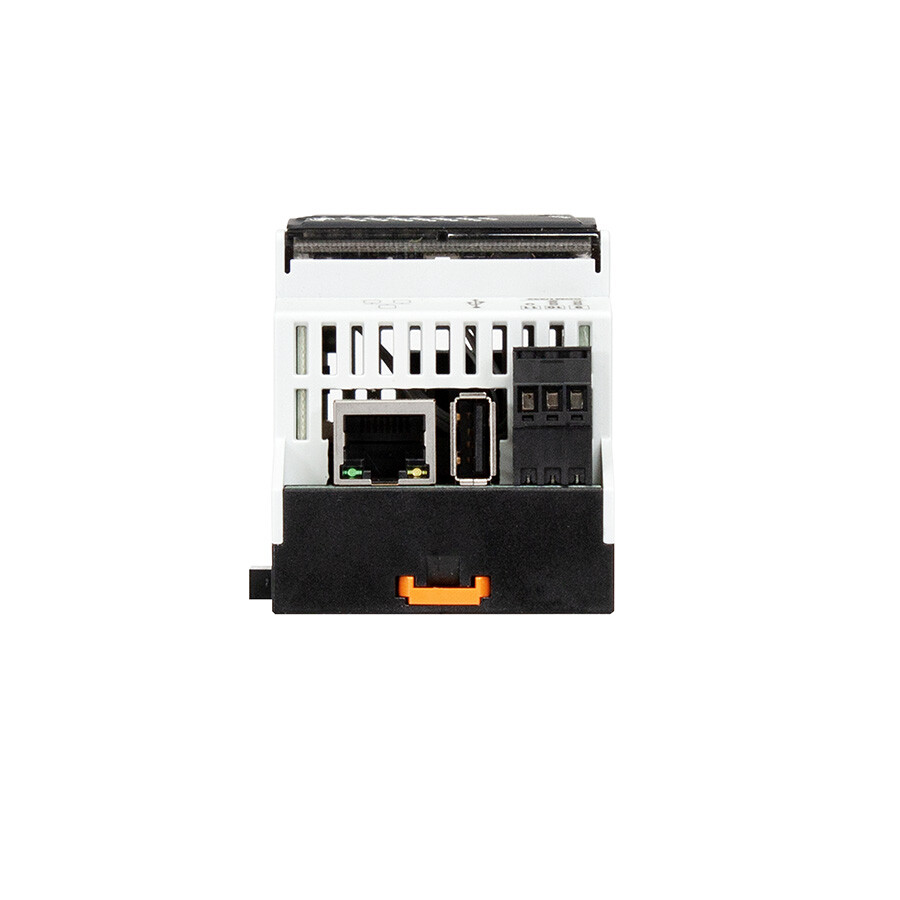

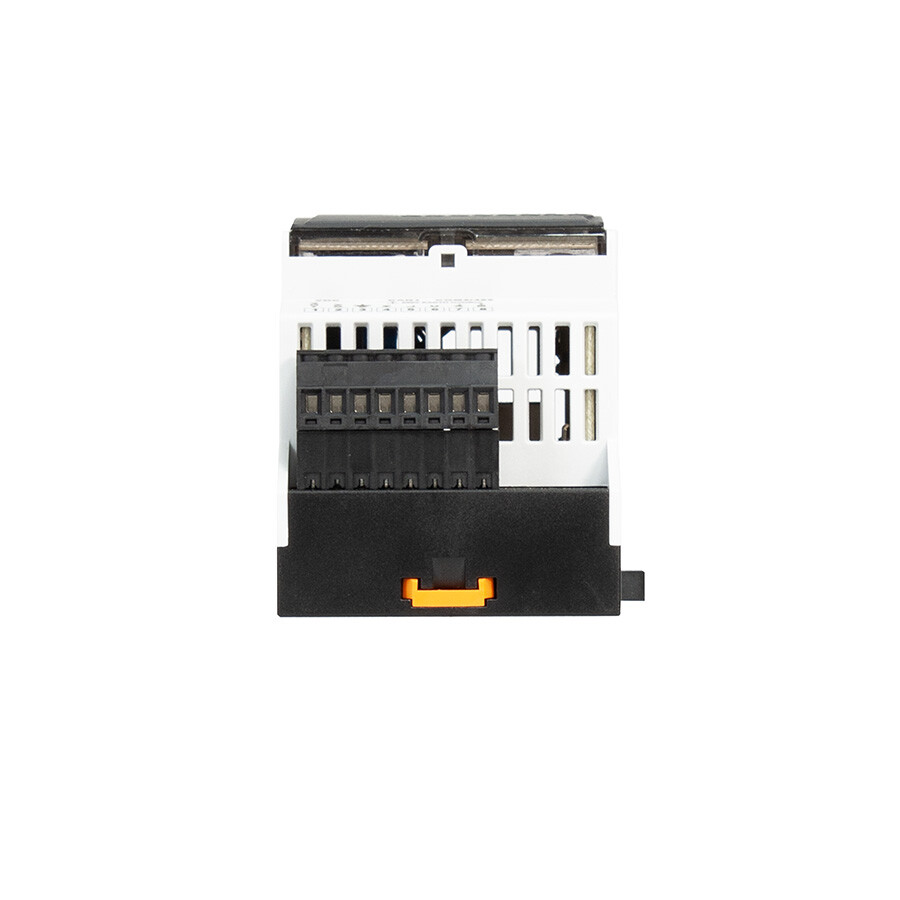

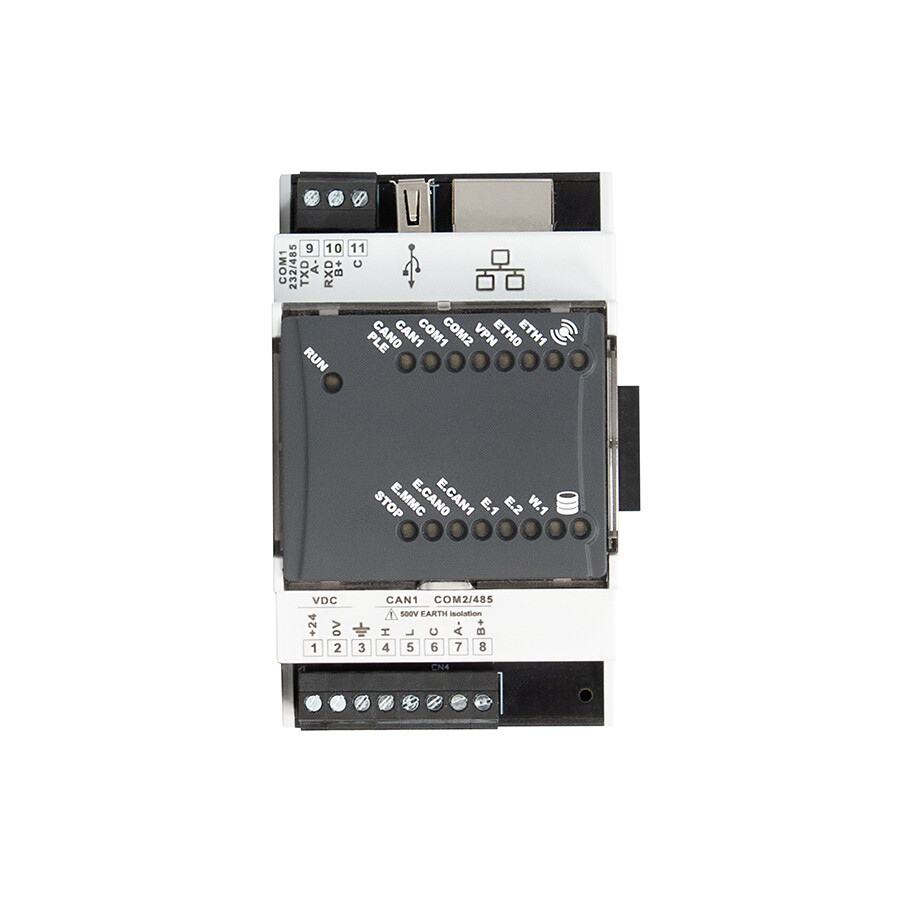

PL700 is the Pixsys PLC CPU integrating Codesys Control SL v.3.5 runtime, programmable by CODESYS development environment.
This CPU supports following native fieldbuses:
- CODESYS CANopen Manager (Master)
- CODESYS EtherCAT Master
- CODESYS EtherNet/IP Adapter (Slave)
- CODESYS Modbus TCP Master / Slave
- CODESYS Modbus Serial Master
- CODESYS PROFINET Device (Slave)
Connectivity for Industry 4.0 is ensured by integrated OPC UA Server protocolo and by MQTT protocol (available as function block).
Protocol and Runtime functionalities may be expanded activating the relevant licenses (SL) from Codesys Store.
On version 2AD the built-in CODESYS WebVisu enables activation of a "Virtual HMI" to display customized synoptics in any HTML5 browser or on a Pixsys Web panel.
Acquisition of local I/Os is possible via integrated fieldbus PLE-DIN-BUS for the Pixsys modules PLE500 and via RS485/ModbusRTU or CANopen for Pixsys remote I/O Modules MCM260X.
Current version integrates a super-capacitor UPS and enables management of unlimited ritentive variables, beside increased noises immunity (PL700-340 only).
The VPN connection via pre-installed Pixsys Portal software service also allows access to the plant subnet (passthrough).
To program PL700 in Codesys please download device descriptor from Software section of this page and add it to standard Codesys suite.
- Dimensions54 x 90 x 64 mm - 3 modules DIN43880
- MaterialBox: Nory V0; Front: self-extinguishing V0 silicone rubber
- WeightApprox. 250 g
- SealingBox and terminal blocks: IP20 (removable terminal blocks)
- Operating conditionsTemperature 0-45 °C, humidity 35..95 uR% (non-condensing)
- CertificationsCE

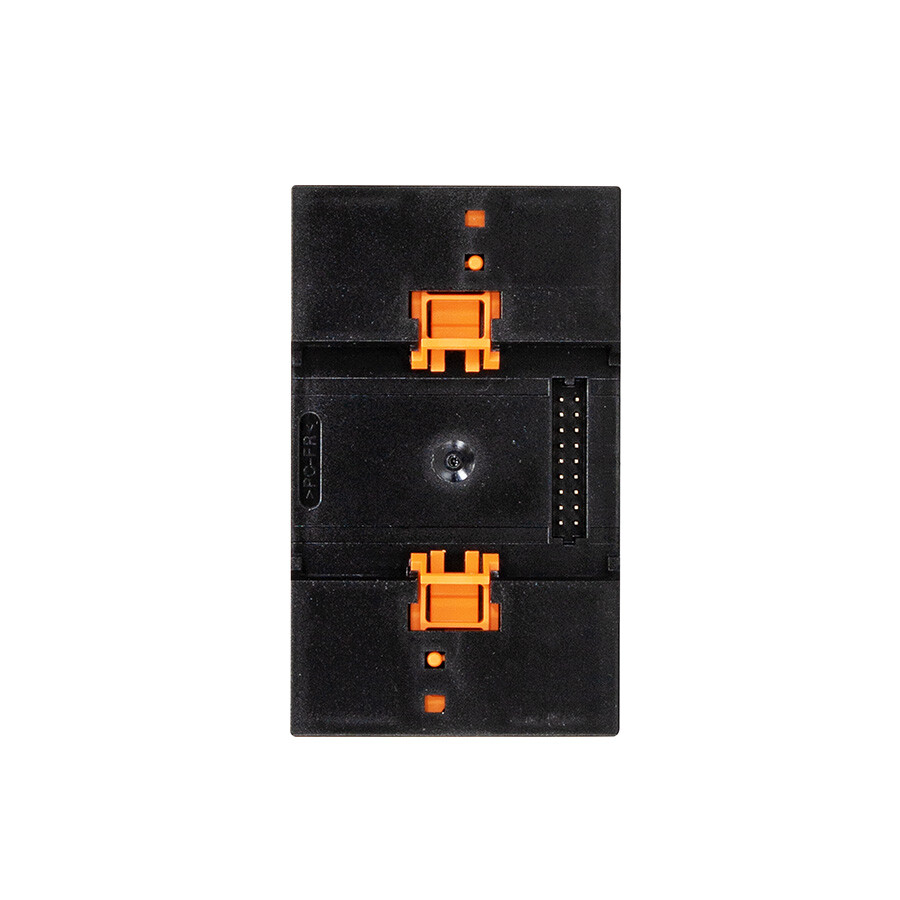

| ORDERING CODES | PL700-340-1AD and PL700-340-2AD | PL700-335-1AD |
|---|---|---|
| Power supply | 12..24 V DC ±15% 50/60 Hz - galvanic isolation 2,5kV | |
| Power consumption | 3 Watt/VA | |
| UPS | Super-capacitor UPS for persistent variables | - |
| Processor | ARM Cortex A8 @ 1 GHz | |
| Memory | Flash 2Gb pSLC Tecnology / RAM 512MB DDR3 | |
| Clock | Real-Time clock, Back-up capacitor | Real-Time clock, Back-up battery, CR2032 Lithium / Manganese Dioxide (Li/MnO2) |
| Serial communication | 2x RS485 (1200..115200 Baud) galvanically isolated or
1x RS485 (1200..115200 Baud) galvanically isolated + 1x RS232 (1200..115200 Baud) 1x RS485 (1200..115200 Baud) | 1x RS485 (1200..115200 Baud) galvanically isolated + 1x RS232 (1200..115200 Baud) |
| CAN | 1x CAN (50K..1Mbit) galvanically isolated | |
| Expansion Bus | PLE-DIN-BUS (real time) on DINrail - Max 24 modules PLE500 connectable | |
| Ethernet | 1x 10 / 100 Mbit/s | |
| USB | 1x USB 2.0 | |
| Micro SD | 1 x Micro SD slot | |
Operating system
Linux Debian 11 Real Time- Communication protocolsPL700-340: EtherCAT Master, PROFINET Device, EtherNet/IP adapter, Modbus RTU Master and TCP Master/Slave, CANopen Master, OPC UA server, MQTT client (encryption
supported)
PL700-335: EtherCAT Master, PROFINET Controller/Device, EtherNet/IP Scanner/adapter, Modbus RTU Master/Slave and TCP Master/Slave, CANopen Master/Slave, CAN J1939 - Soft PLC Logic programmingCodesys V. 3.5.19.60 and later
- Web Graphic interface programmingCodesys WebVisu (not available on PL700-340-1AD)
- VPNPixsys Portal software (pre-installed in demo version) for remote desktop connection (VNC), Web Server, Client FTP, remote assistance.

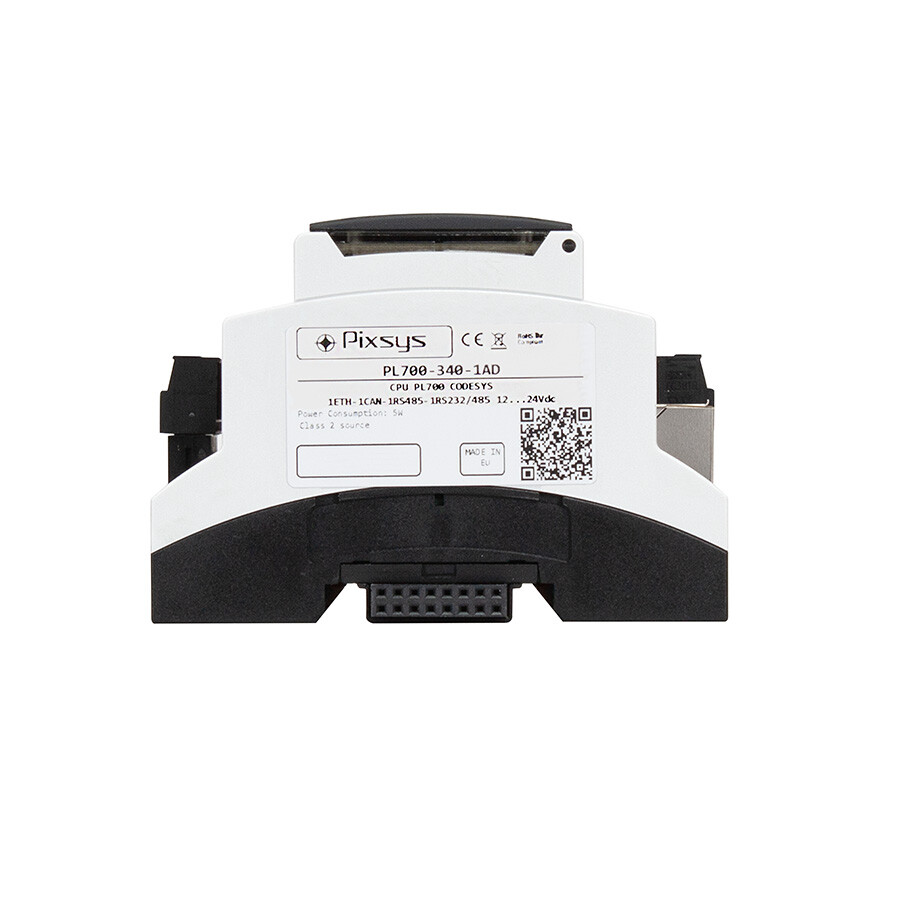

- PL700-340-1ADPLC DIN Rail 1 Ethernet - 1..2 RS485 - 1 RS232 - 1 CANopen
- PL700-340-2ADPLC DIN Rail 1 Ethernet - 1..2 RS485 - 1 RS232 - 1 CANopen + WebVisu
- PL700-335-1ADPLC - CPU - CODESYS 1 ETHERNET - 1 RS485 - 1 RS232 - 1 CANopen + WebVisu
- ACCESSORIES' CODES
- 2400.10.021WMI6201 USB WiFi + BT Dongle RTL8822BU 802.11 abgn/ac 2T2R
- 2200.20.008MODEM 3G/4G USB
- PLE500-2ETHPLC 2 ETHERNET EXPANSION (PL700-340 only)
