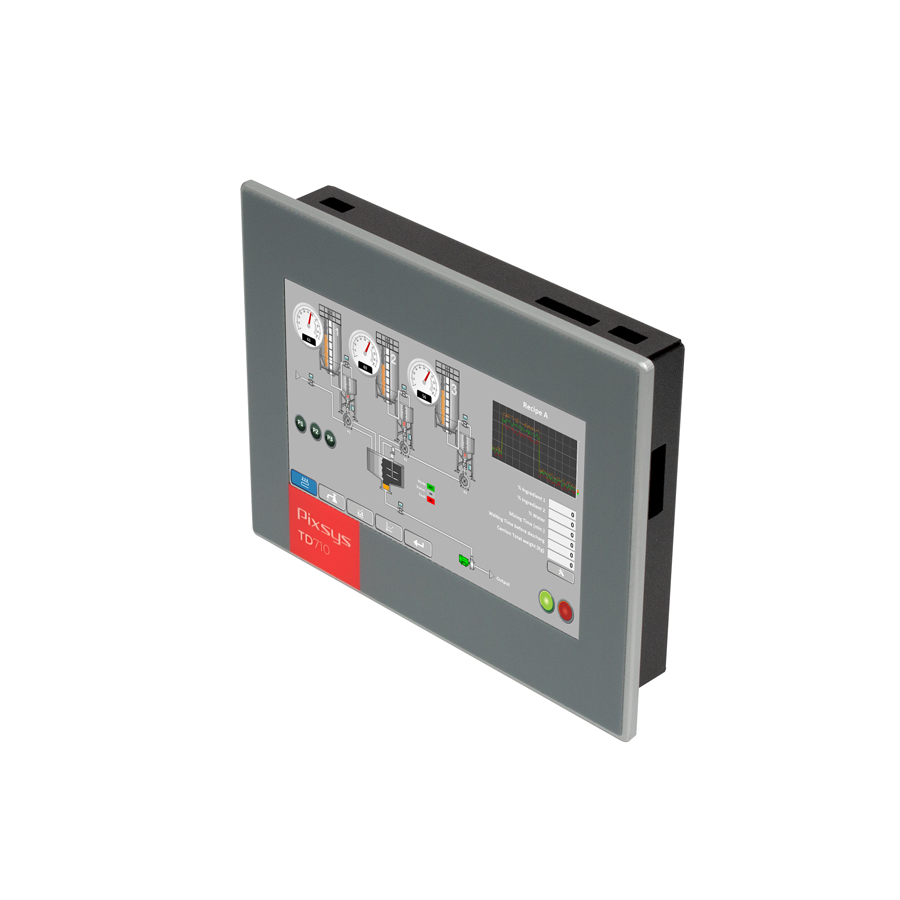

Resistive Touchscreen 800x480, ratio 16:9
HMI TD10 integrates a Soft-PLC programmable with LogicLab tool, IEC61131-3 compliant (ST, IL, FBD, SFC, LADDER).
Movicon 11.6 is the tool for developing the graphic interface.

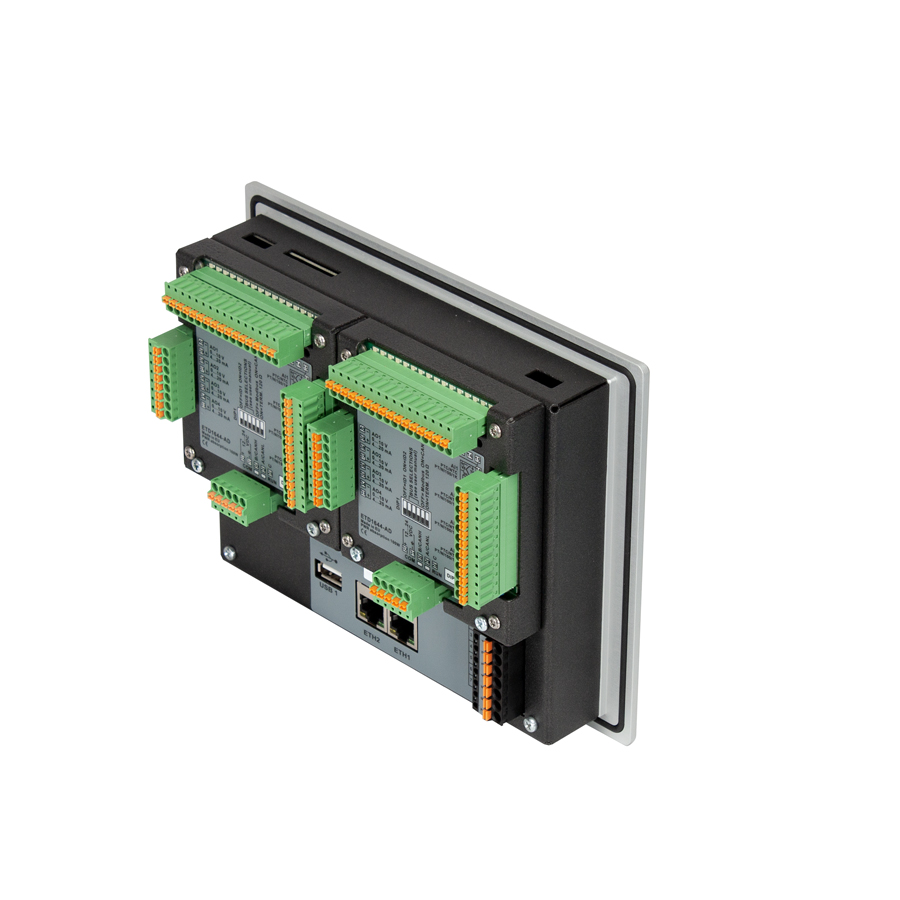

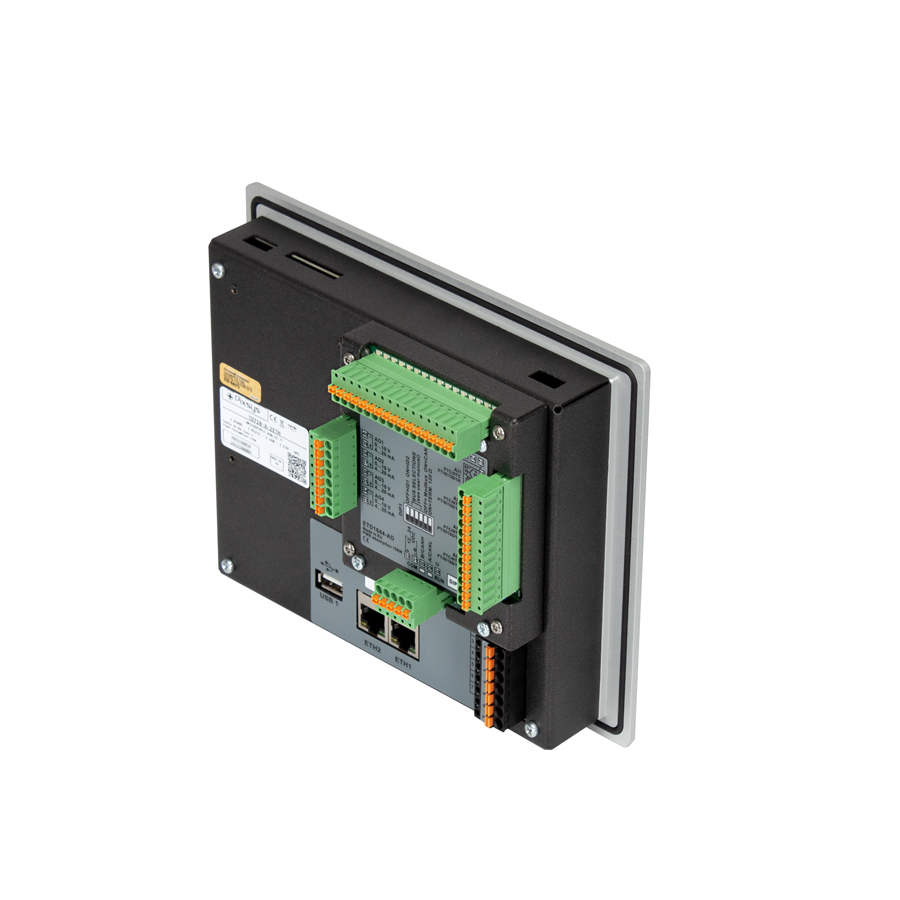

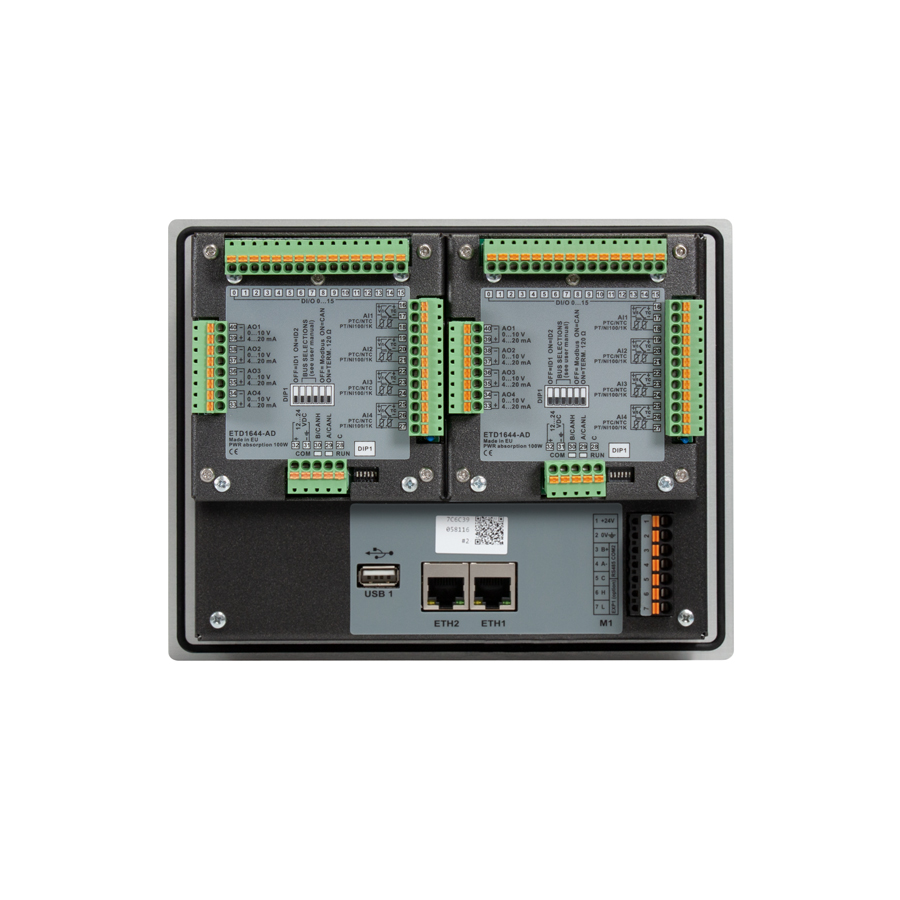

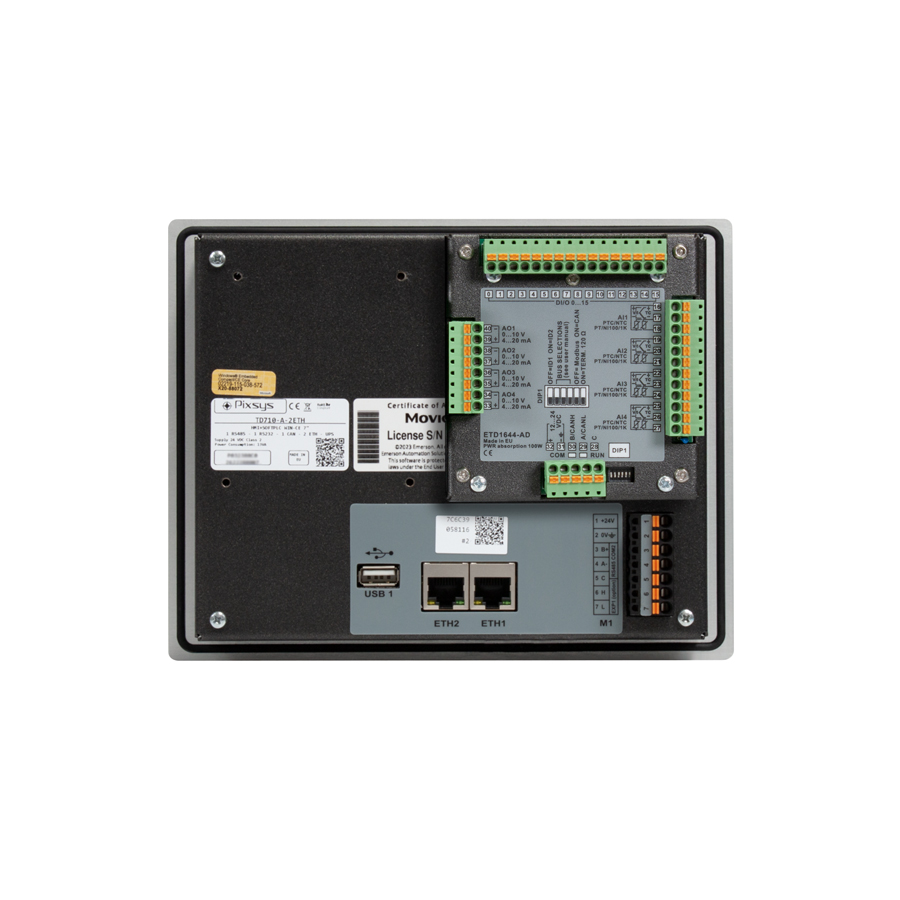

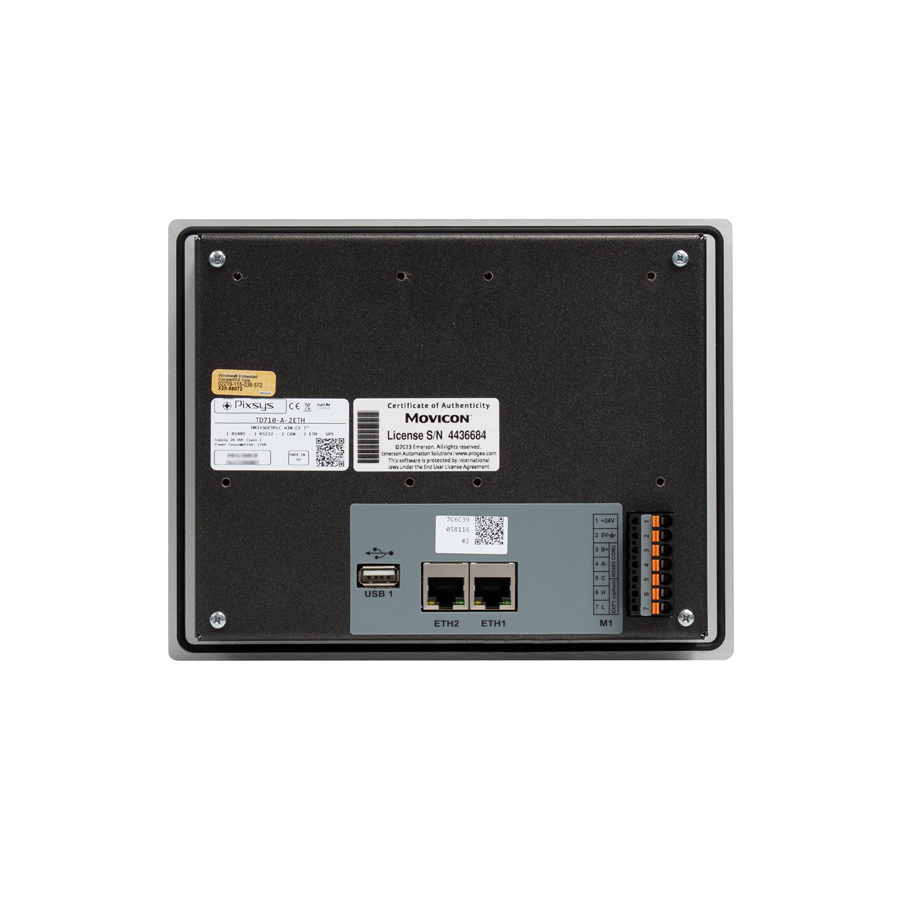

Up to two ETD1644 I/O boards with plug-in connection at the rear of the panel allow compact solutions for systems with a small number of analogue-digital I/Os. The MCM260X series provides additional remote I/Os.
Connectivity includes an opto-isolated RS485 serial, a CAN port and two 10/100 Ethernet ports with distinct MAC address, allowing to separate the machine/plant's network from company's network (ERP, iNDUSTRY 4.0, Internet).
VPN connection for remote desktop/webserver and projects debugging/updating is integrated via pre-installed Pixsys Portal software service.

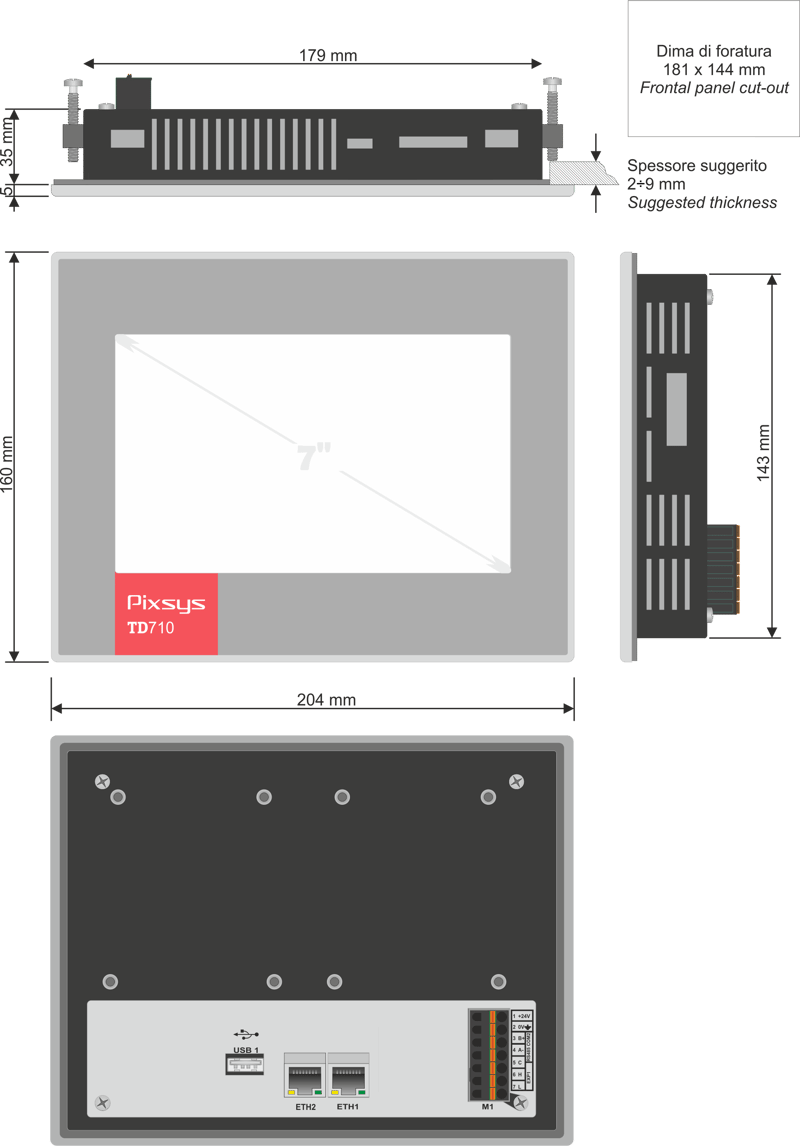

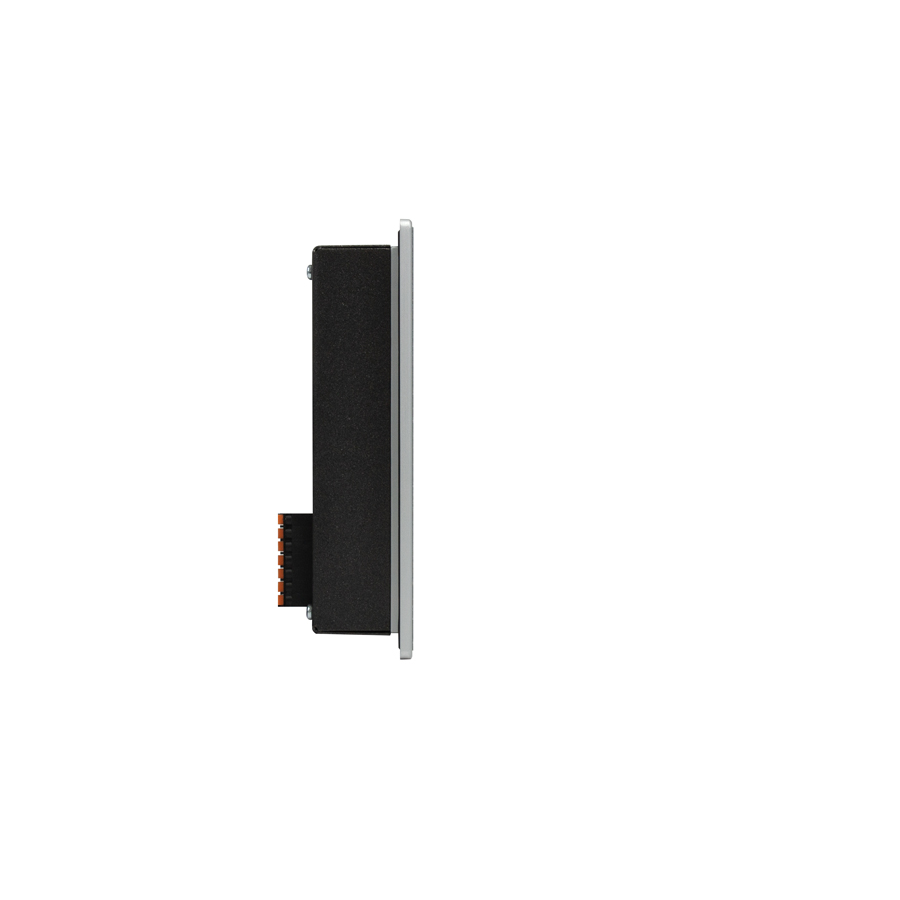

- Dimensions204 x 160 x 35 mm (panel cut-out 181 x 144 mm)
- MaterialFront panel: aluminium alloy (billet), polyestere mask. Housing: 10/10, Ral 7016
- WeightApprox. 937 g
- SealingFront panel: IP65, Housing and terminal blocks: IP20
- Operating conditionsTemperature 0-50 °C, humidity 10..90 RH% (non-condensing)
- CertificationsCE, UL
| ORDERING CODES | TD710-A-2ETH |
|---|---|
| Power supply | 24 V AC/DC ±15% 50/60 Hz - galvanic isolation 2,5kV |
| Power consumption | 6,5 Watt/VA |
| Processor | ARM Cortex A8 @ 1 GHz |
| Memory | eMMC 2 GB / RAM 512 MB DDR3 |
| Display | 7" LCD TFT resistive touch, 800x480 pixel - format 16:9, 260k colours (16 bit), 280 cd/m2, lifetime typ. 20000h @ 25°C |
| Clock | Real-Time clock, Back-up battery |
| Serial communication | RS485 (1200..115200 Baud) galvanically isolated |
| CAN | CAN (50K..1Mbit) galvanically isolated |
| Ethernet | 2x 10 / 100 Mbit/s - separate MAC addresses |
| USB | 1x USB 2.0 |
- Operating systemWindows 7 Embedded Compact
- Communication protocolsModbus RTU - Modbus TCP/IP - CAN Open - Free Port mode
- Soft PLC Logics programmingLogicLab (IDE), standard IEC61131-3 (ST, IL, FBD, SFC, LADDER), cycle time 4 mS
- Graphic interface programmingMovicon 11.6 (IDE)
- VPNPixsys Portal software (pre-installed in demo version) for remote desktop connection (VNC)/ Web Server/ Client FTP /remote assistance.
- TD710-A-2ETHHMI+SOFTPLC WIN-CE 7 - MOVICON 11 - 1 RS485-1 USB-1 CAN-2 ETHERNET-24VDC
