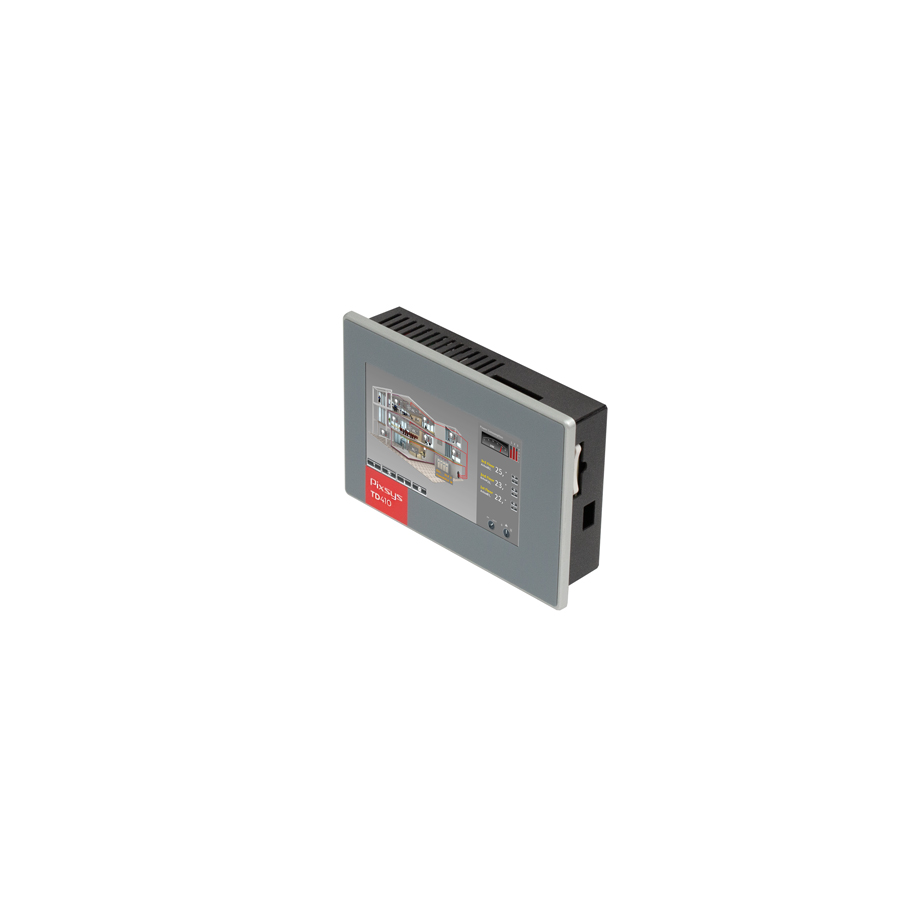

TD410-AD | HMI 4.3" with Soft-PLC

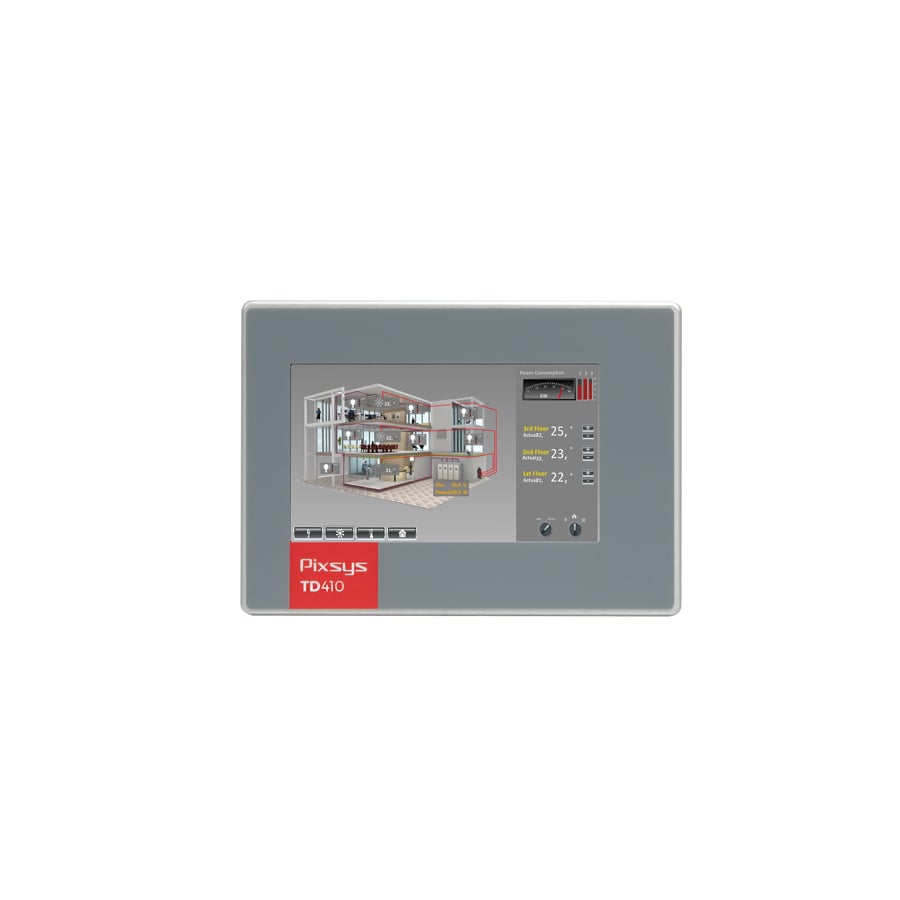

Resistive Touchscreen 480x272, ratio 16:9

TD410 HMI integrates a Soft-PLC programmable with LogicLab tool, IEC61131-3 compliant (ST, IL, FBD, SFC, LADDER).

Movicon 11.6 is the tool for developing the graphic interface.

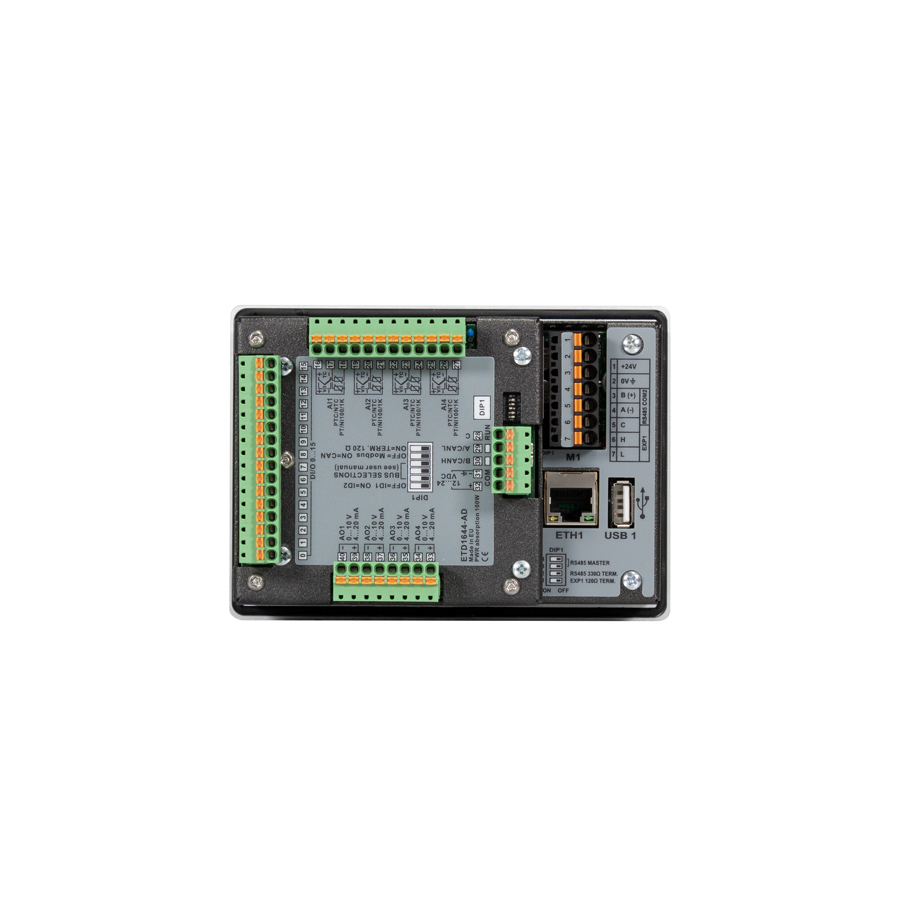

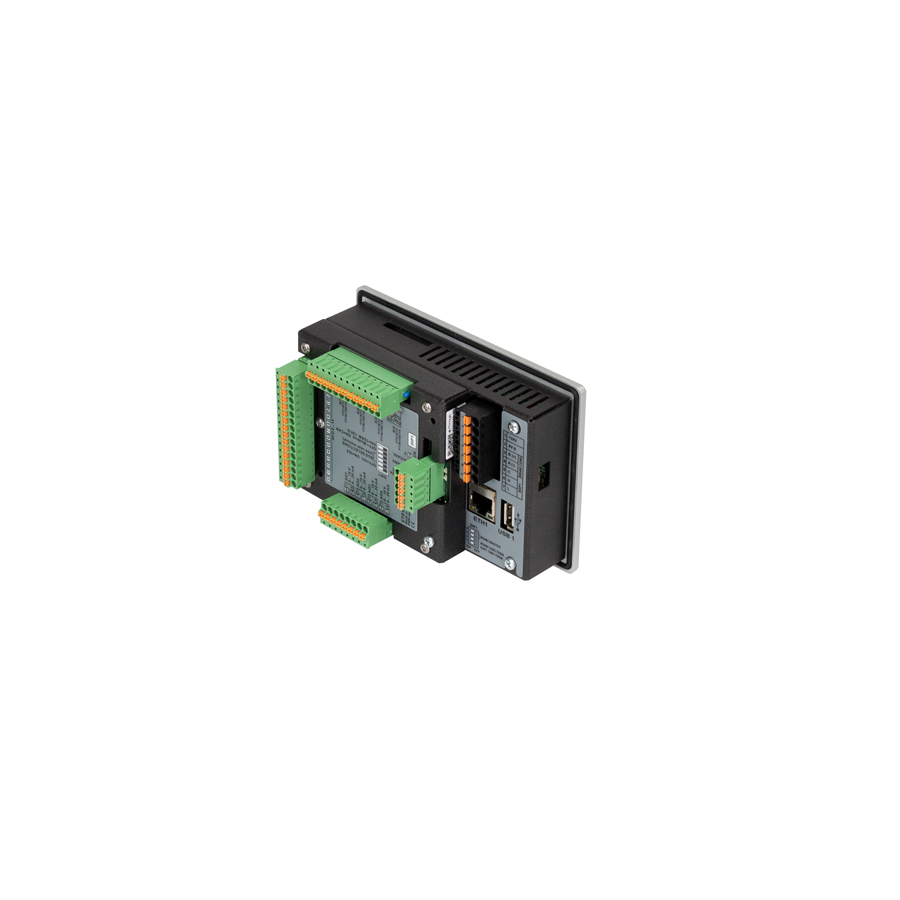

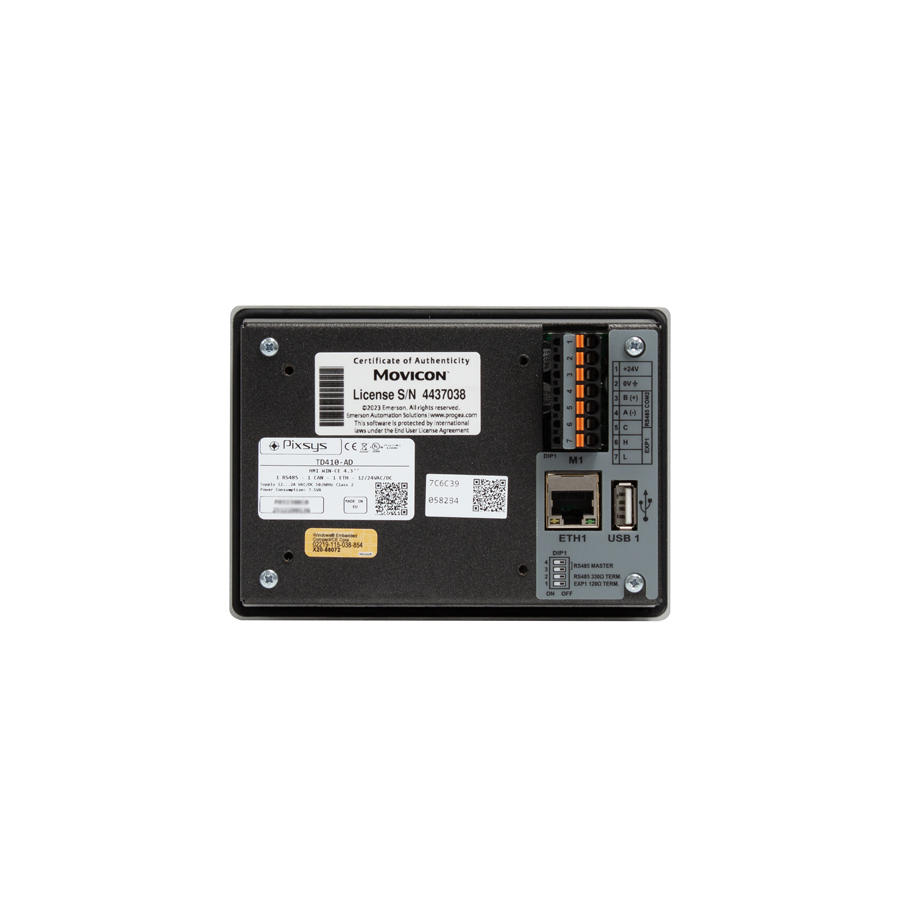

ETD1644 series I/O board with plug-in connection at the rear of the panel allows very compact solutions for systems with a small number of analogue-digital I/Os. The MCM260X series provides additional remote I/Os.

Connectivity includes an opto-isolated RS485 serial, a CAN port and 10/100 Ethernet port.

VPN connection for remote desktop/webserver and program debugging/updating is integrated via pre-installed Pixsys Portal software service.

Main features

Dimensions

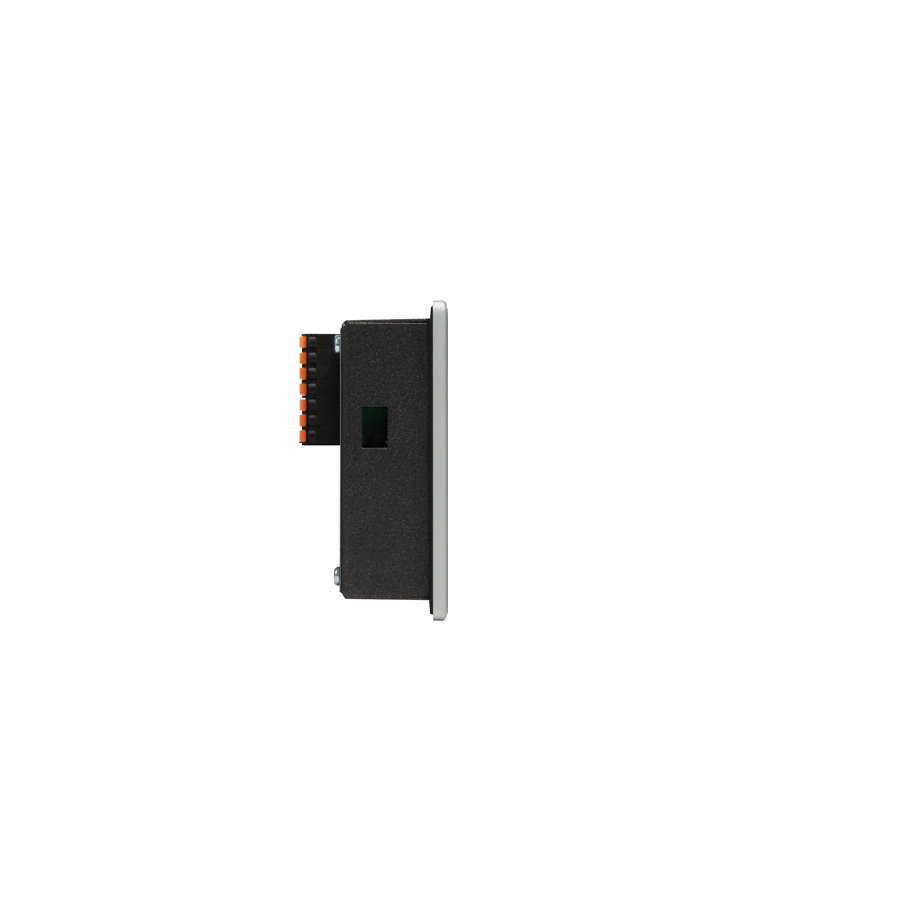

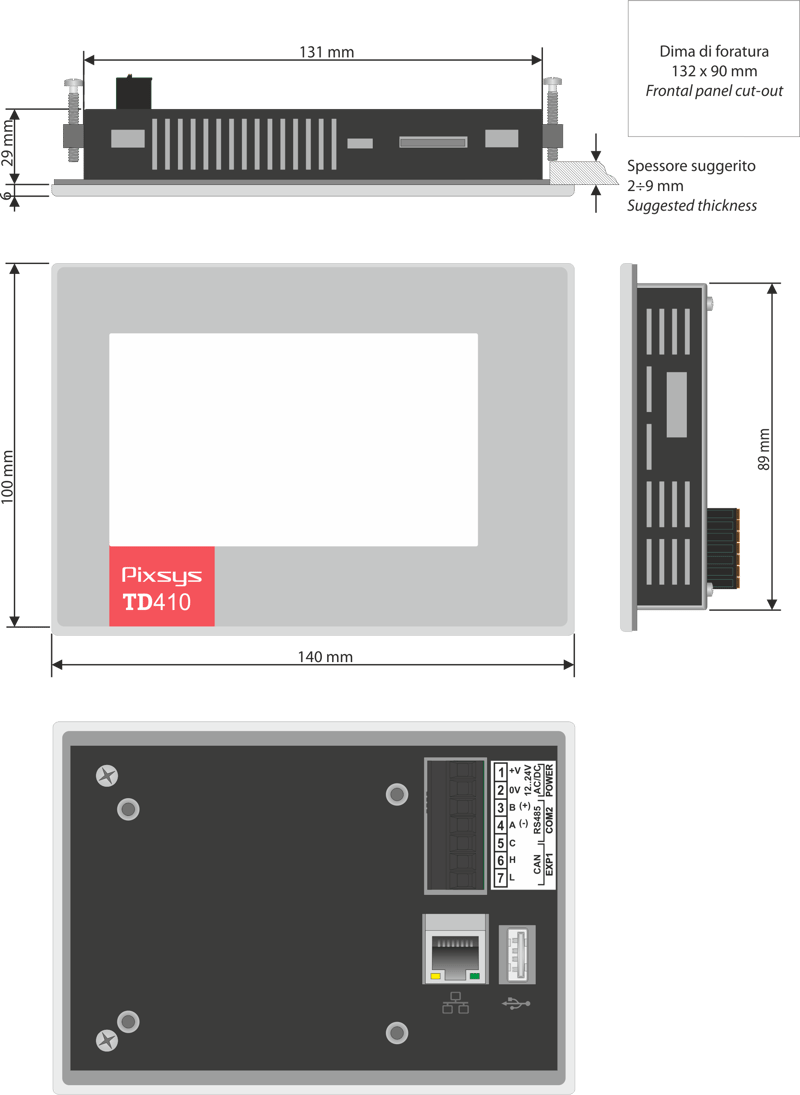

140 x 100 x 29 mm (panel cut-out 132 x 90 mm)
Material
Front panel: aluminium alloy (billet), polyestere mask. Housing: 10/10, Ral 7016
Weight
Approx. 500 g
Sealing
Front panel: IP65 , Housing and terminal blocks: IP20
Operating conditions
Temperature 0-50 °C, humidity 10..90 uR% (non-condensing)
Certifications
CE, UL

Hardware features

ORDERING CODES	TD410-AD
Power supply	24 V AC/DC ±15% 50/60 Hz - galvanic isolation 2,5kV
Power Consumption	5,5 Watt/VA
Processor	ARM Cortex A8 @ 1 GHz
Memory	eMMC 2 GB / RAM 512 MB DDR3
Display	4.3" LCD TFT resistive touch , resolution 480x272 pixel, 65k colors with 4 wires integrated resistive touch (lifetime typ. 50000h @ 25°C)
Clock	Real-Time clock, Back-up battery
Serial communication	RS485 (1200..115200 Baud) galvanically isolated
CAN	CAN (50K..1Mbit) galvanically isolated
Ethernet	10 / 100 Mbit/s
USB	1x USB 2.0

Software features

Operating system
Windows 7 Embedded Compact
Communication protocols
Modbus RTU - Modbus TCP/IP - CAN Open - Free Port mode
Soft PLC Logics programming
LogicLab (IDE), standard IEC61131-3 (ST, IL, FBD, SFC, LADDER), cycle time 4 mS
Graphic interface programming
Movicon 11.6 (IDE)
VPN
Pixsys Portal software (pre-installed in demo version) for remote desktop connection (VNC) / Web Server / Client FTP / remote assistance.
