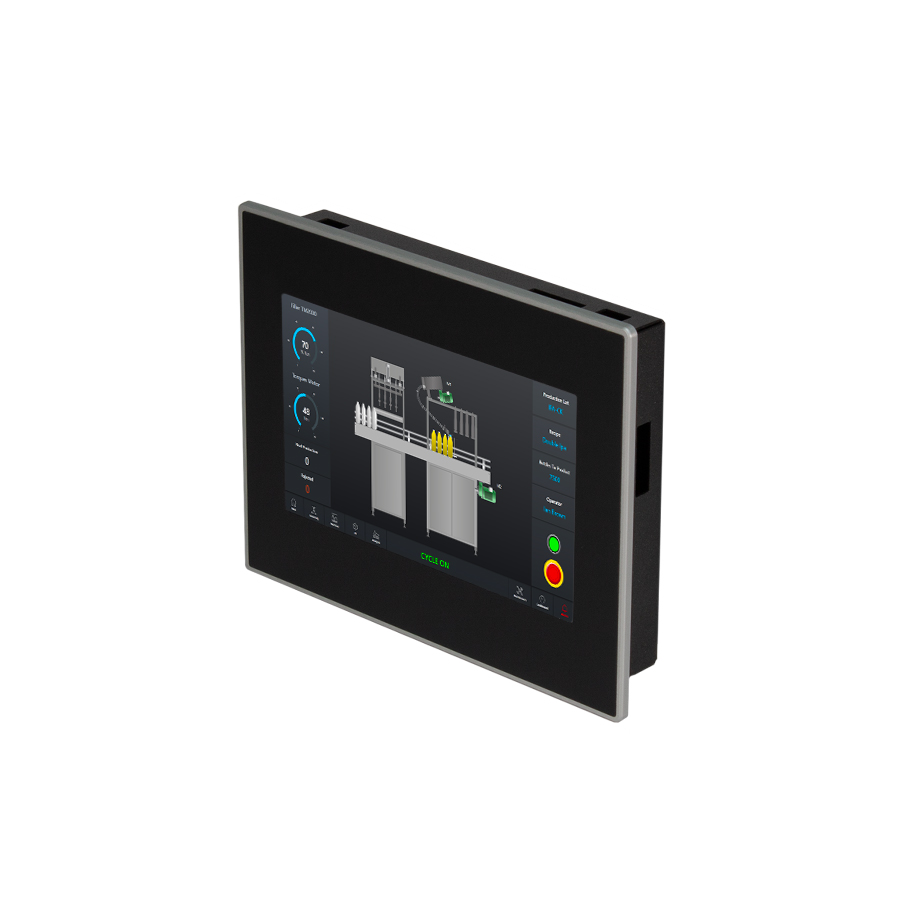

Resistive Touch screen 800x 480 , ratio 16:9
Based on the WEC 7 operating system and ARM CORTEX A8 processor, with integrated solid-state memory, the panel is programmable with Movicon 11.6, allowing interface with the most popular PLC brands.

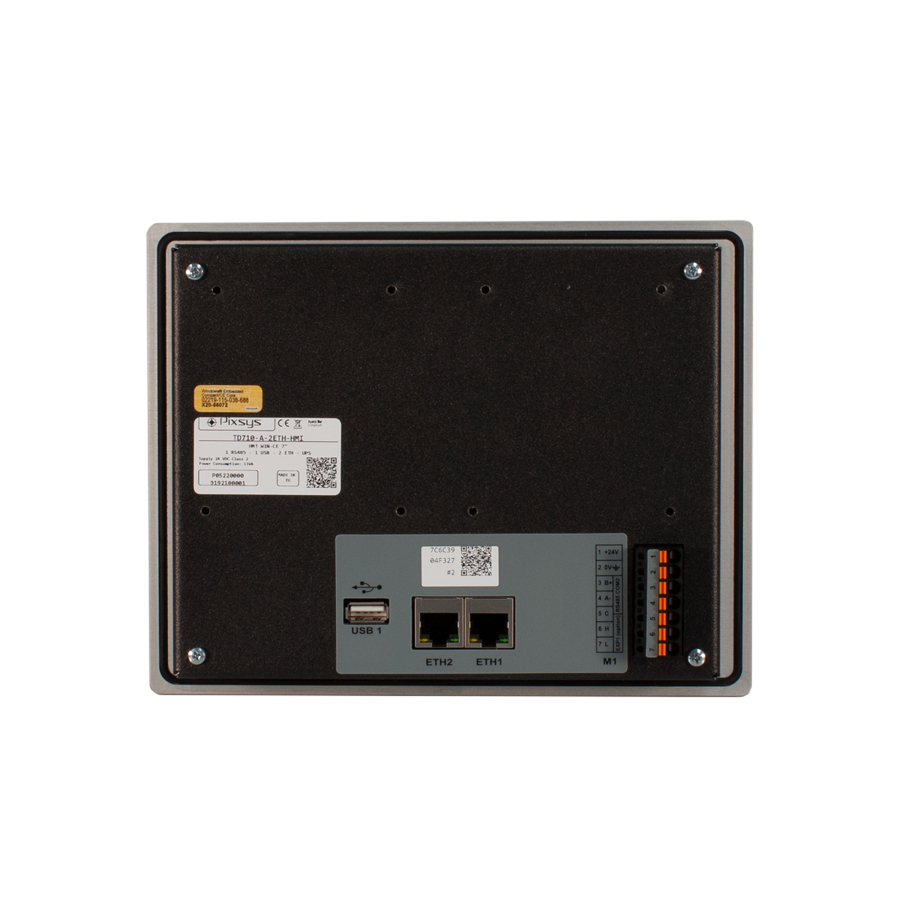

Connectivity includes an opto-isolated RS485 serial port and two 10/100 Ethernet ports with distinct MACs to allow separation between the machine/plant network and the company network (ERP, Industry 4.0, Internet access).
VPN connection for remote desktop/webserver and program debugging/updating is integrated via pre-installed Pixsys Portal software service.

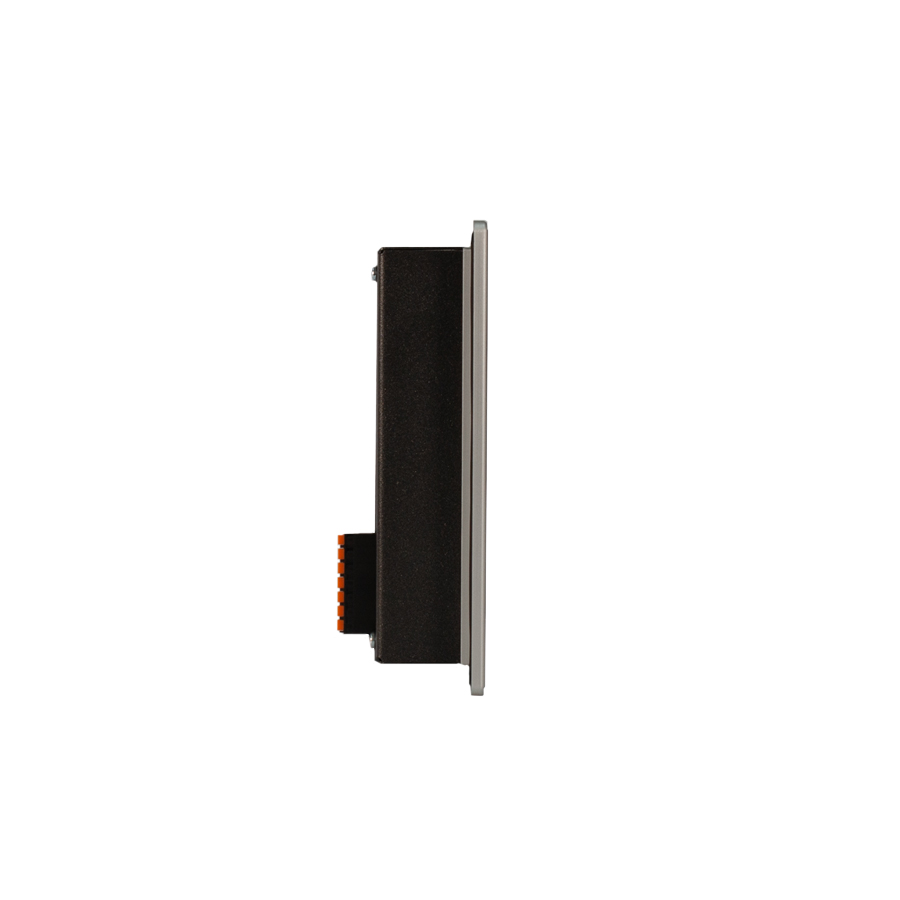

- Dimensions204 x 160 x 35 mm (panel cut-out 181 x 144 mm)
- MaterialFront panel: aluminium alloy (billet), polyestere mask. Housing: 10/10, Ral 7016
- WeightApprox. 937 g
- SealingFront panel: IP65, Housing and terminal blocks: IP20
- Operating conditionsTemperature 0-50 °C, humidity 10..90 RH% (non-condensing)
- CertificationsCE, UL
| ORDERING CODES | TD710-A-2ETH-HMI |
|---|---|
| Power supply | 24 V AC/DC ±15% 50/60 Hz - galvanic isolation 2,5kV |
| Power consumption | 6,5 Watt/VA |
| Processor | ARM Cortex A8 @ 1 GHz |
| Memory | eMMC 2 GB / RAM 512 MB DDR3 |
| Display | 7" LCD TFT resistive touch, 800x480 pixel - format 16:9, 260k colors (16 bit), 280 cd/m2, lifetime typ. 20000h @ 25°C |
| Clock | Real-Time clock, Back-up battery |
| Serial communication | RS485 (1200..115200 Baud) galvanically isolated |
| Ethernet | 2x 10 / 100 Mbit/s - separate MAC address |
| USB | 1x USB 2.0 |
- Operating systemWindows 7 Embedded Compact
- Communication protocolsModbus RTU - Modbus TCP/IP - OPC-UA client - ADS Twin CAT - B+R System 2000 PVI - S7/TCP -FINS Serial - FINS Ethernet - NJ Ethernet/IP - MELSEC Serial - MELSEC Ethernet - DF1 Protocol - Ethernet/IP
- Graphic interface programmingMovicon 11.6 (IDE)
- VPNPixsys Portal software (pre-installed in demo version) for remote desktop connection (VNC)/ Web Server/ Client FTP /remote assistance.
- TD710-A-2ETH-HMIHMI WIN-CE 7 - MOVICON 11 - 1 RS485-1 USB-2 ETHERNET-24VDC
