SWI600 is a plug&play unmanaged Ethernet industrial switch without configuration interface, with 1 Gbps speed.
Optimised in a robust vertical metal housing for industrial DIN-rail applications; 24Vdc power supply is available on terminal.
The switch is available in two versions with 5 or 8 ports.
- MaterialsBox: Metal; Front panel: self estinguishing polyester
- SealingBox and terminal blocks: IP20; Terminal blocks extractable
- Operating ConditionsTemperature 0-45 °C, humidity 35..95 uR% (without condensation)

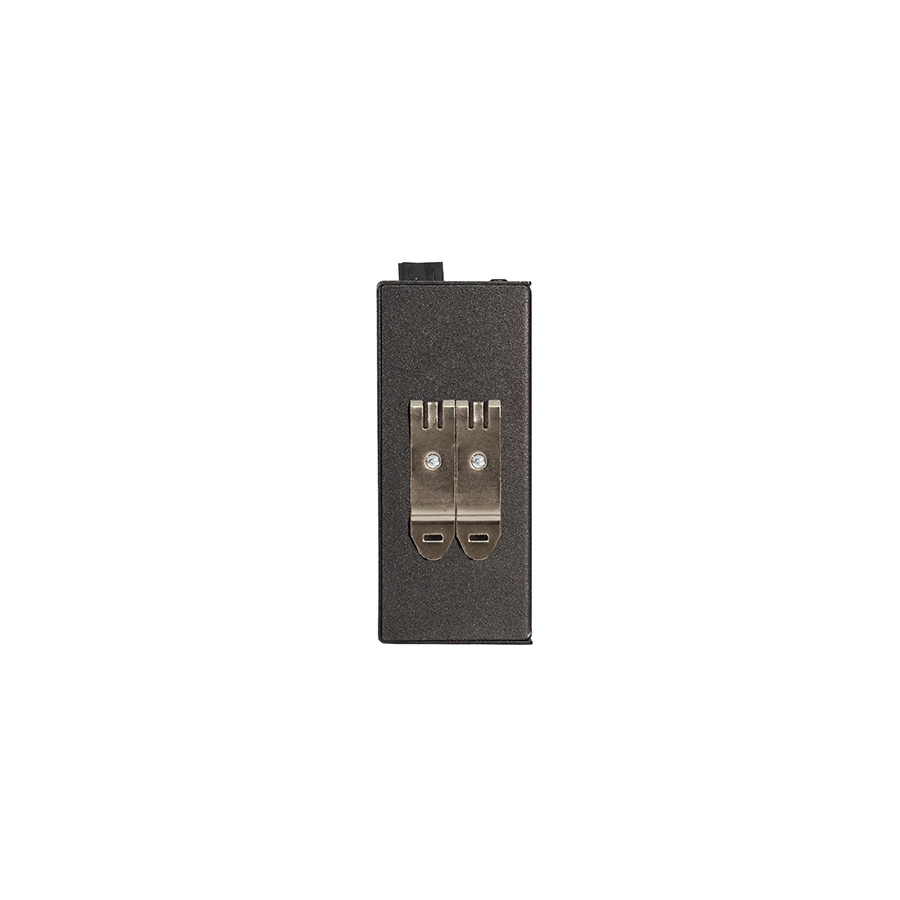

- InstallationDIN rail mounting with integrated clips
| ORDERING CODES | SWI600-5A | SWI600-8A |
|---|---|---|
| Power | 24 V DC ±10% | 24 V DC ±10% |
| Consumption | 3 Watt | 3 Watt |
| Dimensions (mm) | 48 x 105 x 131 | 48 x 115 x 171 |
| LAN ports | 5 (Gigabit) | 5 (Gigabit) |
| WAN ports | - | - |
| PLC ports | - | - |
| USB ports | - | - |
- SWI600-5AETHERNET SWITCH 5LAN 24VDC
- SWI600-8AETHERNET SWITCH 8LAN 24VDC
