Pixsys CNV510 protocol converters enable communication between networks relying on different protocols. CNV510 allow to interface devices equipped with Modbus RTU protocol on RS485 or CANOpen with systems based on the Siemens ProfibusDP and Profinet protocols.
Specifically CNV510 models equipped with serial port RS485 allow to integrate Pixsys controllers, I/O modules, PLCs and HMIs into existing or new Siemens networks.
The programming software of the converters allows to create automatically the configuration in .GSD file format to integrate Pixsys devices into Siemens development environments TiA Portal and Step7.

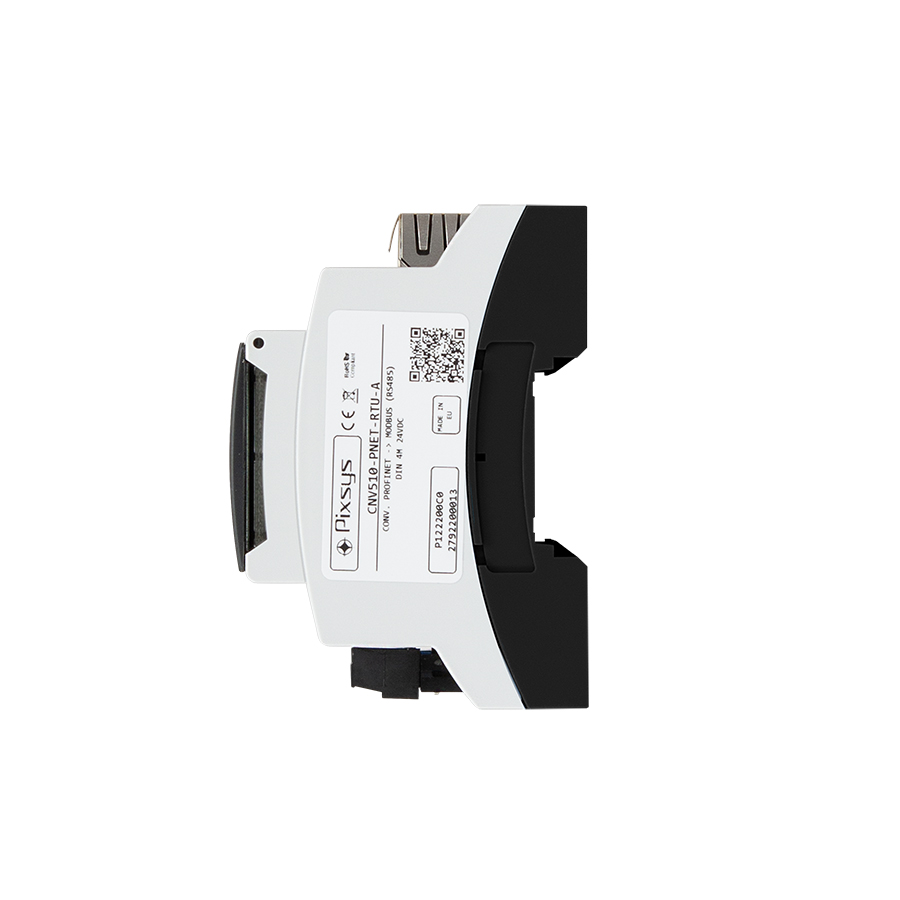

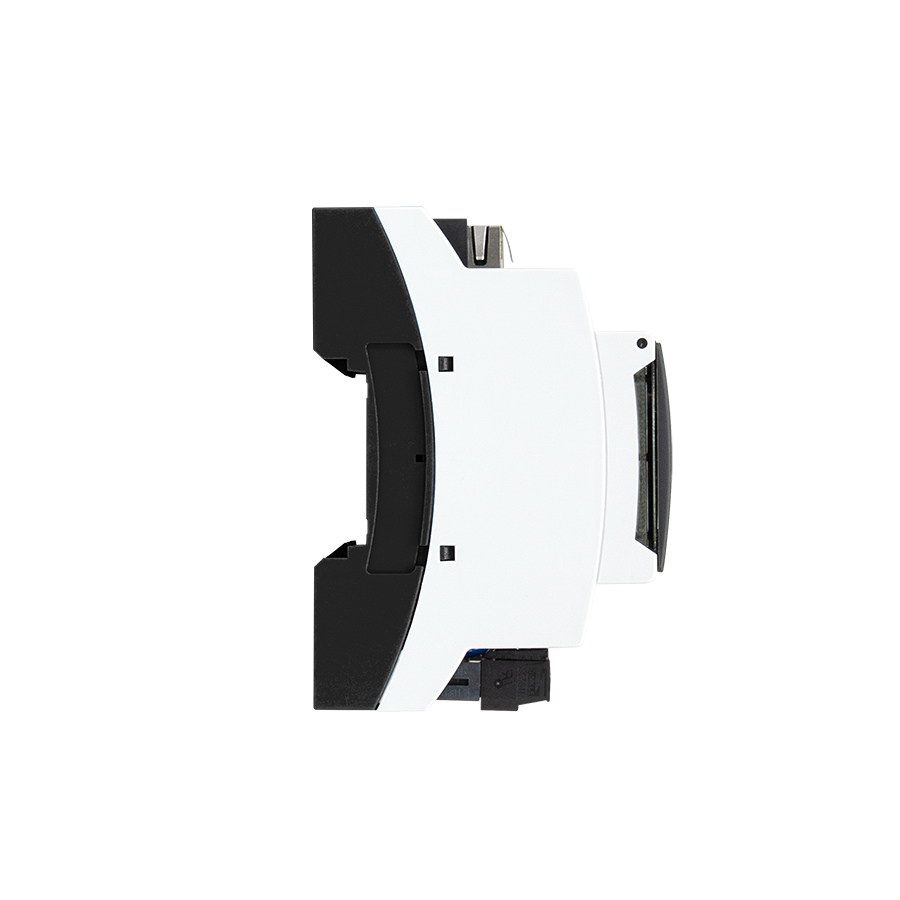

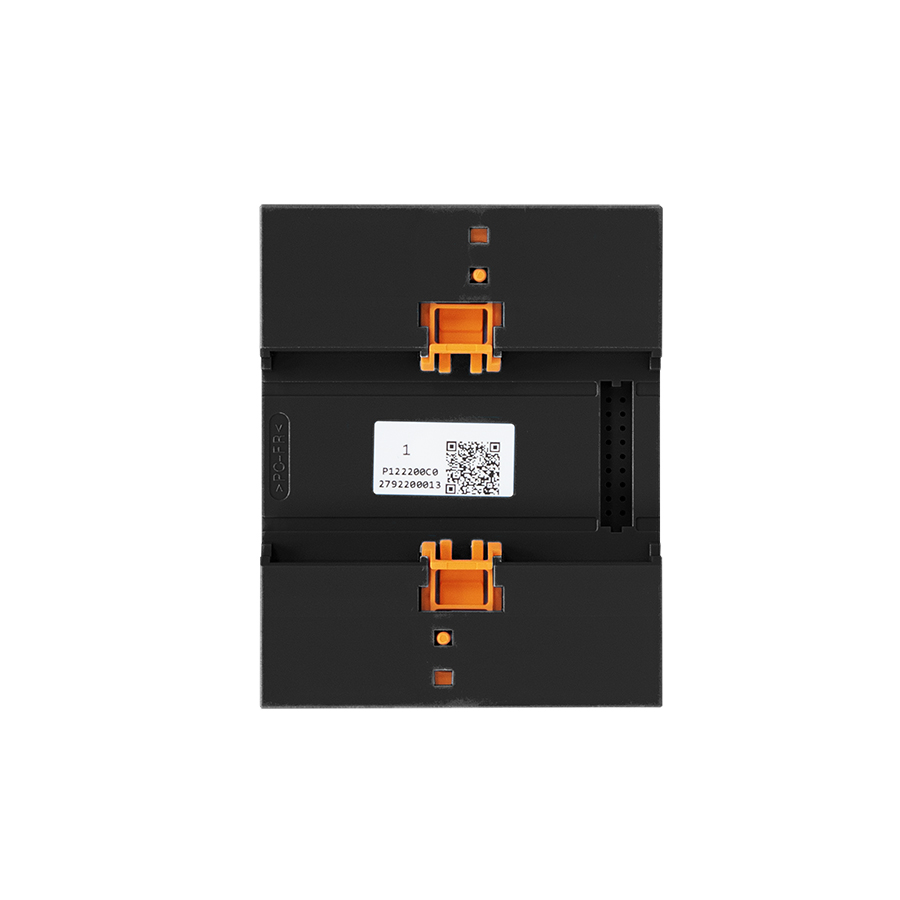

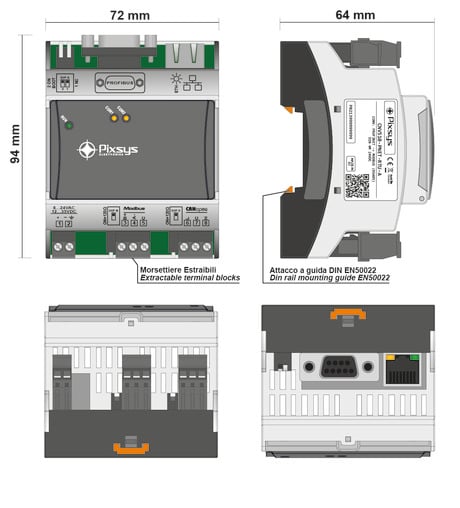

- Dimensions71 x 90 x 64 mm - 4 modules DIN43880
- MaterialNoryl V0
- WeightApprox. 250 g
- SealingBox and terminal blocks: IP20
- Operating conditionsTemperature 0..45 °C, humidity 35..95 RH%
- CertificationsCE
| ORDERING CODES | CNV510-PBUS-RTU-A | CNV510-PBUS-CAN-A | CNV510-PNET-RTU-A | CNV510-PNET-CAN-A |
|---|---|---|---|---|
| Power supply | 12..24 V DC ±15% | 12..24 V DC ±15% | 12..24 V DC ±15% | 12..24 V DC ±15% |
| Power consumption | 3 Watt/VA | 3 Watt/VA | 3 Watt/VA | 3 Watt/VA |
| Reading memory | 512 Bytes | 512 Bytes | 512 Bytes | 512 Bytes |
| Writing memory | 512 Bytes | 512 Bytes | 512 Bytes | 512 Bytes |
| Serial communication | 1x RS485 (1200..115200 Baud) galvanically isolated | - | 1x RS485 (1200..115200 Baud) galvanically isolated | - |
| CAN | - | 1x CAN (50K..1Mbit) galvanically isolated | - | 1x CAN (50K..1Mbit) galvanically isolated |
| Ethernet | 1x 10 / 100 Mbit/s | 1x 10 / 100 Mbit/s | 1x 10 / 100 Mbit/s | 1x 10 / 100 Mbit/s |
- Communication protocol ProfibusProfibus Slave (codes -PBUS) with file .gsd
- Communication protocol PROFINETPROFINET Slave (codes-PNET) with file .gsd
- Communication protocol CAN OpenCAN Open Master (codes -CAN) with file .esd
- Communication protocol Modbus RTUModbus RTU Slave (codes -RTU)
- CNV510-PBUS-RTU-APROFIBUS -> MODBUS (RS485) CONVERTER
- CNV510-PBUS-CAN-APROFIBUS -> CANOPEN CONVERTER
- CNV510-PNET-RTU-APROFINET -> MODBUS (RS485) CONVERTER
- CNV510-PNET-CAN-APROFINET -> CANOPEN CONVERTER
