CNV580 is the Pixsys IIoT Modem for remote data monitoring: an all-in-one solution including modem, SIM card, Cloud service, PixsysGuard App as user interface. No additional contracts with service providers are required. The data traffic pre-loaded on the SIM is estimated to last at least 5 years (depending on the data volume used by the application).
The dimensions of the CNV580 are compact and the functionality is optimised for either stand-alone use or networking via RS485 serial. In the first case, with digital I/Os or via the 4...20mA analogue input, it is possible to collect data from sensors or other devices. In the second case the RS485 serial via Modbus RTU protocol connects the CNV580 with other Pixsys devices equipped with serial and allows reading/writing of selected variables. In both cases push notifications on App for alarms, power status or other events are enabled.
Installation, activation and control are simple and immediate thanks to the Pixsys Guard App with preset scenarios related to the various devices, with access levels and prerogatives differentiated per user.

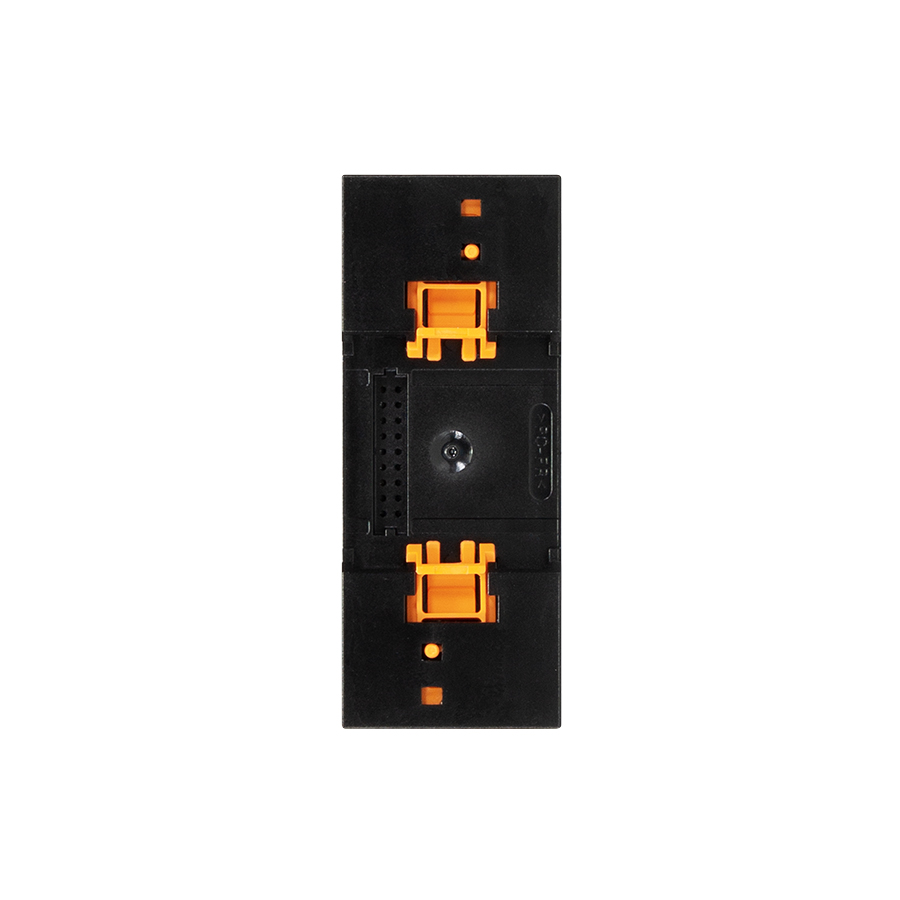

- Dimensions36 x 90 x 84 mm - 2 moduls DIN43880
- MaterialNoryl V0
- WeightApprox. 250 g
- SealingBox and terminal blocks: IP20
- Operating conditionsTemperature 0..45 °C, humidity 35..95 RH%
- CertificationsCE
|
ORDERING CODES |
CNV580-LTE-1AD |
CNV580-LTE-2AD |
|---|---|---|
|
Power supply |
12..24 V DC ±15% |
|
|
Power consumption |
Typical 2 W - Max 12 W (per start-up UPS) |
|
|
Analogue inputs |
1 x 4...20mA 2 wires (40000 points) ±0,2% F.S |
1 x 4...20mA 2 wires (40000 points) ±0,2% F.S |
|
Acquiring time |
100 mS |
100 mS |
|
Digital inputs |
2x PNP galvanic isolation 2,5 kV |
2x PNP galvanic isolation 2,5 kV |
|
Digital outputs |
1x PNP 24 VDC - 30 mA max |
1x PNP 24 VDC - 30 mA max |
|
Relais outputs |
- |
- |
|
Analogue outputs |
- |
- |
|
Serial communication |
- |
1x RS485 (1200..115200 Baud) |
|
Radio module |
2G GSM/EDGE 850/ 900/ 1800/ 1900MHz |
|
|
Certification GSM module |
GCF/ CE/ UCRF/ FCC/ Anatel/ FAC/ ICASA |
|
|
SIM card |
Pre-installed on Nano-sim connector, including data traffic , estimated coverage 5 years with App "Pixsys Guard" |
|
|
Bluethooth 4.0 |
Channel for the device set-up by APP "Pixsys Guard" |
|
|
Certification BT module |
FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
|
- Push notificationsSending Push Notifications on Pixsys Guard App
- MQTT protocolMQTT with Pixsys default formatting and JSON configuration file
- Communication protocolModbus RTU only for Pixsys devices

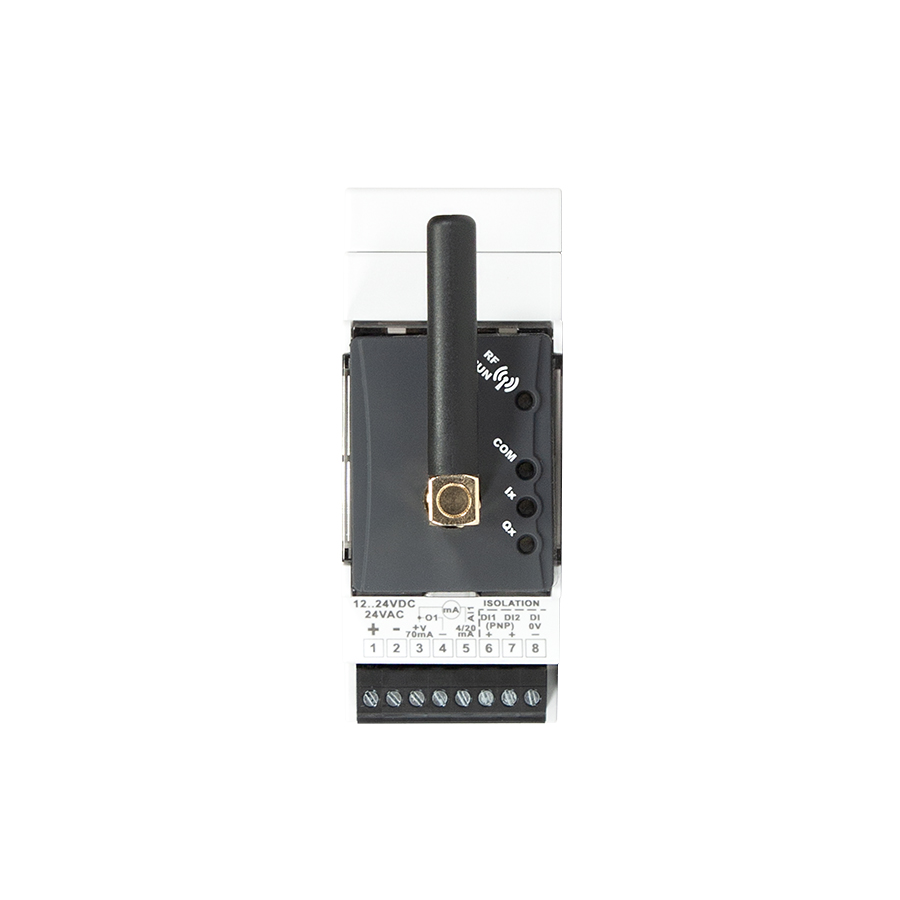

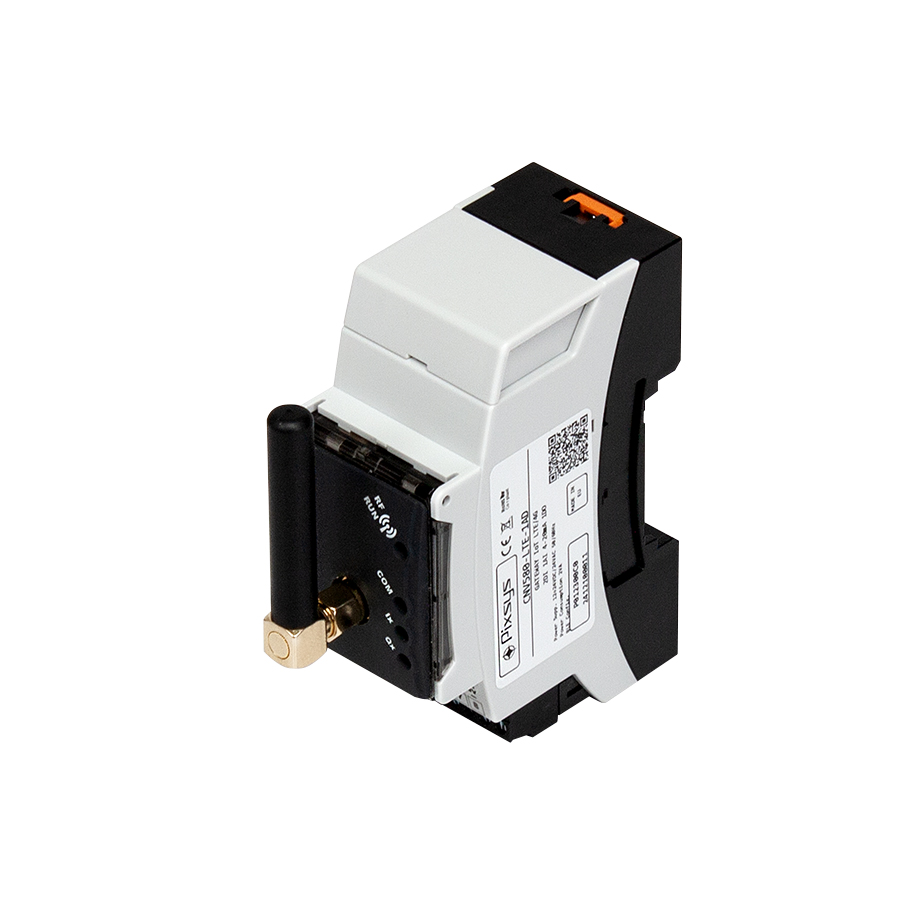

- CNV580-LTE-1ADGATEWAY IoT LTE/4G 2DI 1AI 4-20mA 1DO

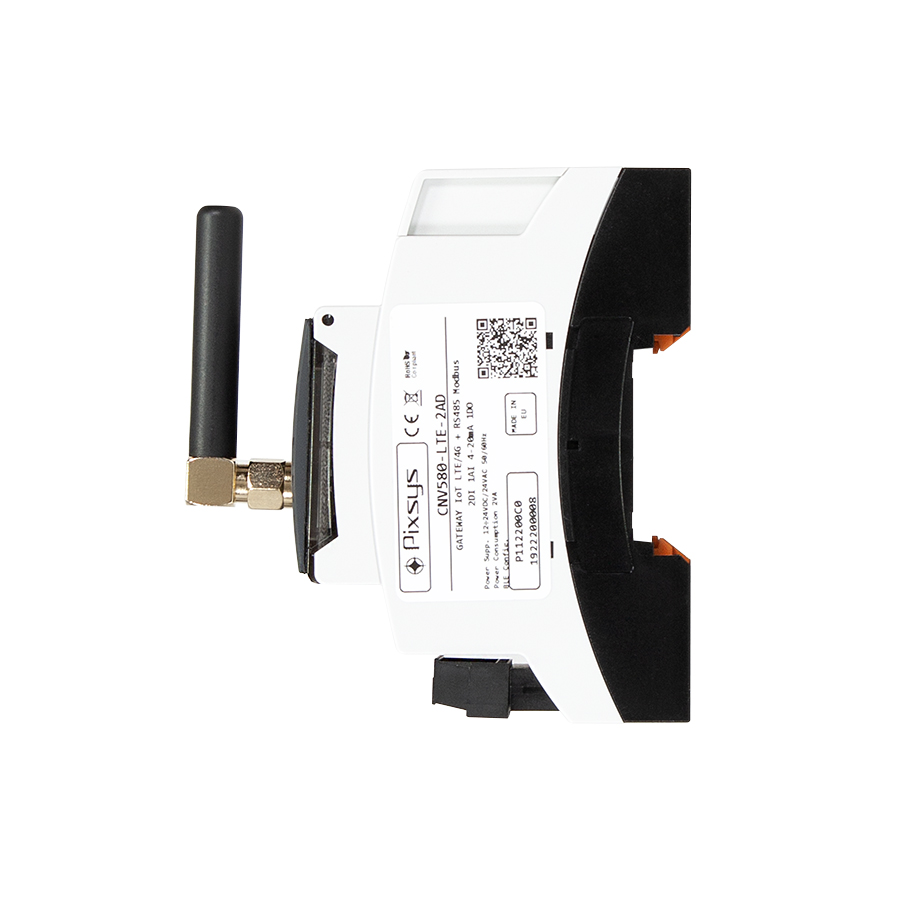

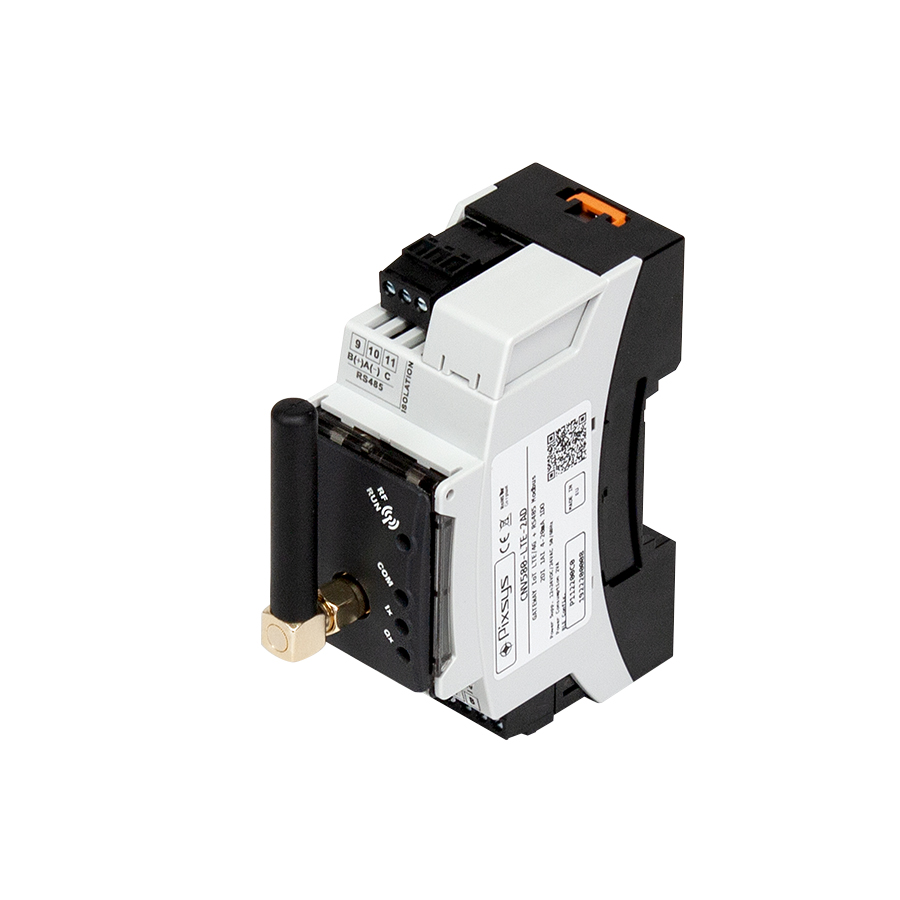

- CNV580-LTE-2ADGATEWAY IoT LTE/4G + RS485 Modbus 2DI 1AI 4-20mA 1DO
