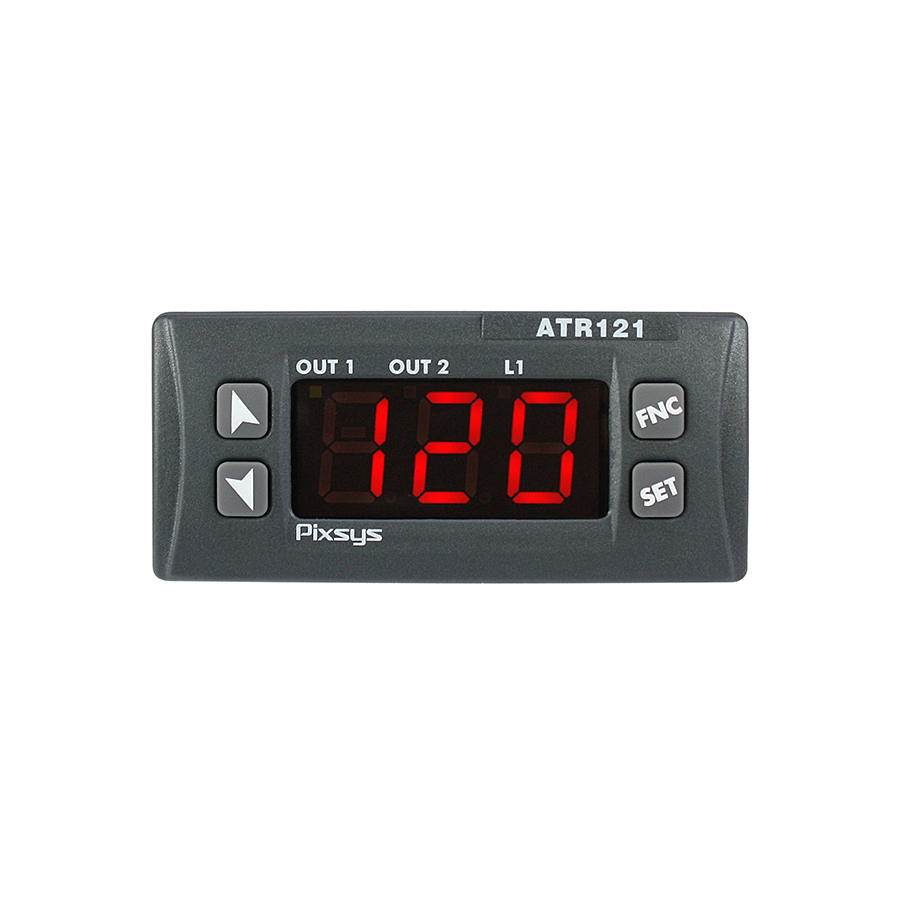

This compact PID controller features high configurability. The analogue input is programmable for temperature sensors (resistance thermometers, thermocouples) but also for pressure transmitters, humidity and flow sensors.
The heating-cooling PID control algorithm is optimized for both temperature regulation and for processes with quick transitory, like pressure and flow control.
Software features of the ATR121 include open-close logics for valve control in industrial HVAC and dosing systems.
The controller outputs are always freely selectable selectable as command/multiple alarm modes/events.

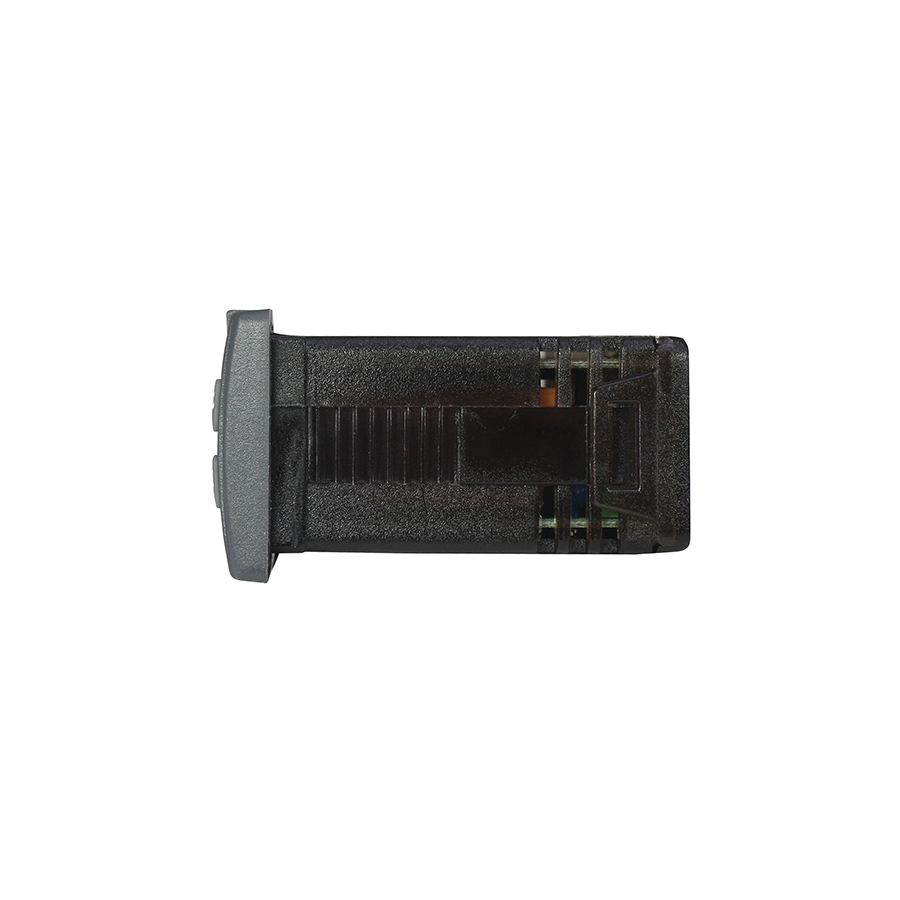

- Dimensions74 x 32 x 53 mm
- MaterialBox: polycarbonate, Front: ABS UL94V0 self-extinguishing
- WeightApprox. 100 g
- SealingFront panel: IP54, Box: IP30, terminal blocks IP20
- Operating conditionsTemperature 0-45 °C, humidity 35..95 uR%
- CertificationsCE, UL
| ORDERING CODES | ATR121-AD | ATR121-B |
|---|---|---|
| Power supply | 12..24 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV | 230 V AC ±15% 50/60 Hz - galvanic isolation 2,5KV |
| Power consumption | 2,4 Watt/VA max | 3 Watt/VA max |
| Display | 3 cifre, 0,56” red + 3 signaling leds | |
| Analogue inputs | 1 x Ris. 16bit, programmable for thermocouples K, S, R, J (automatic compensation of cold junction 0..50°C, ±0,5% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (β 3435K), Process signals 0..10 V (40000 points), 0/4..20mA (30000 points), Potentiometers 6..150 KΩ (40000 points). Impedence: | |
| Sampling time | 100 ms (frequency 10 Hz) | |
| Digital output | 1x 12..35 VDC - 30 mA for SSR command | 1x 8 VDC - 20 mA for SSR command |
| Auxiliary output | 12 VDC - 30mA max for sensor supply | 12 VDC - 20mA max for sensor supply |
| Relais Output | 1x 8 A - 250 V AC resistive loads 1x 5 A - 250 V AC resistive loads | |
- Control algorithmsON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional
- TuningManual or automatic
- Alarm modeAbsolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset. Loop Break Alarm
- Double P.I.DHeating / Cooling with double P.I.D.
- Soft-StartRising gradient expressed as Degrees / Hour or fixed output percentage
- Open / Close logicsOpen / Close logics for motorized valves
- Software parameter configurationMemory Card, software LABSOFTVIEW, EASY-UP codes
- Data protectionLock of Command/Alarm Setpoints - Access to parameters by Password
- ATR121-ADDOUBLE SETPOINT CONTROLLER 32X74 3 Digit 1 AI-2 RL-SSR-12/24V
- ATR121-BDOUBLE SETPOINT CONTROLLER 32X74 3 Digit 1 AI-2 RL-SSR-230V
