DRR450 | PID Temperature Controller + SSR

PID temperature controller DRR450 has been designed to control temperature and current on multi-zone systems via RS485 communication standard and Modbus RTU/Slave protocol.

It is extremely compact and features direct plug-in connection to the mono-phase SSR power module, reducing wiring costs and installation time.

The integrated current transformer allows monitoring of current on the load and management of the relevant alarm.

In addition to SSR control output, a second output is available on DRR450 and it is programmable for alarms or heating/cooling PID functions.

Application fields include plastic extrusion, injection molding, packaging, furnaces, dryers, textile machineries and generally multi-zone heat treatment systems.

Main features

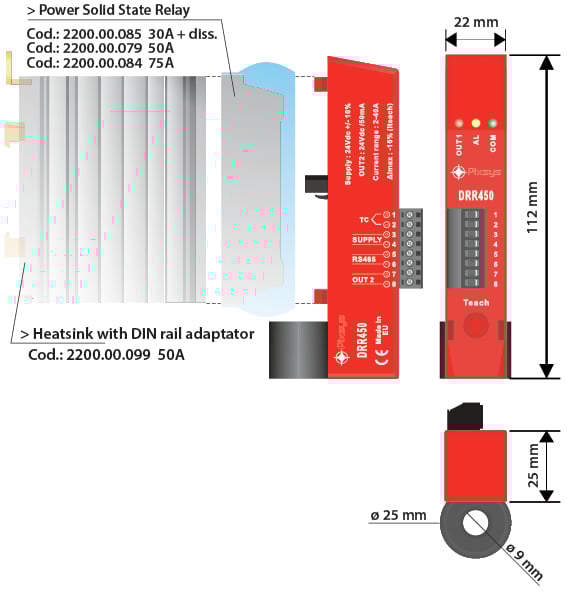

Dimensions
Module 22,5mm series ESUC DIN-rail mounting EN50022
Material
Box: Polycarbonate V0
Weight
Approx. 75 g
Sealing
Box and terminal blocks: IP20
Operating conditions
Temperature 0..45 °C, humidity 35..95 RH%
Certification
CE

Hardware features

ORDERING CODES	DRR450-12A-T128
Power supply	24 V DC ±10% - galvanic isolation 2,5KV
Power consumption	1 Watt/VA
Display	-
Analogue inputs	1 x Ris. 13bit, programming between K, J, T, E (automatic compensation of the cold junction 0..50°C, Toll. @25°C ±0,2% F.S.)
TA input	1x T.A. 50 mA, 800 μs - Ris. 0,1 A
Digital inputs	-
Digital outputs	1x 5VDC - 20mA max for direct command of SSR Celduc SU series 1x 24VDC - 50mA max on terminal blocks
Serial communication	RS485 (1200..115200 Baud)

Software features

Control algorithms
ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time-proportioned
Tuning
Manual or automatic
Alarm mode
Absolute/ threshold, band, upper/lower deviation, Alarms with optional manual reset and activation delay, Loop Break Alarm
Double PID
Heating / cooling with double PID
Soft-Start
Rising gradient programmable as Degree / hour or fixed output %
Software parameter configuration
Software LABSOFTVIEW
Communication protocols
Modbus RTU
