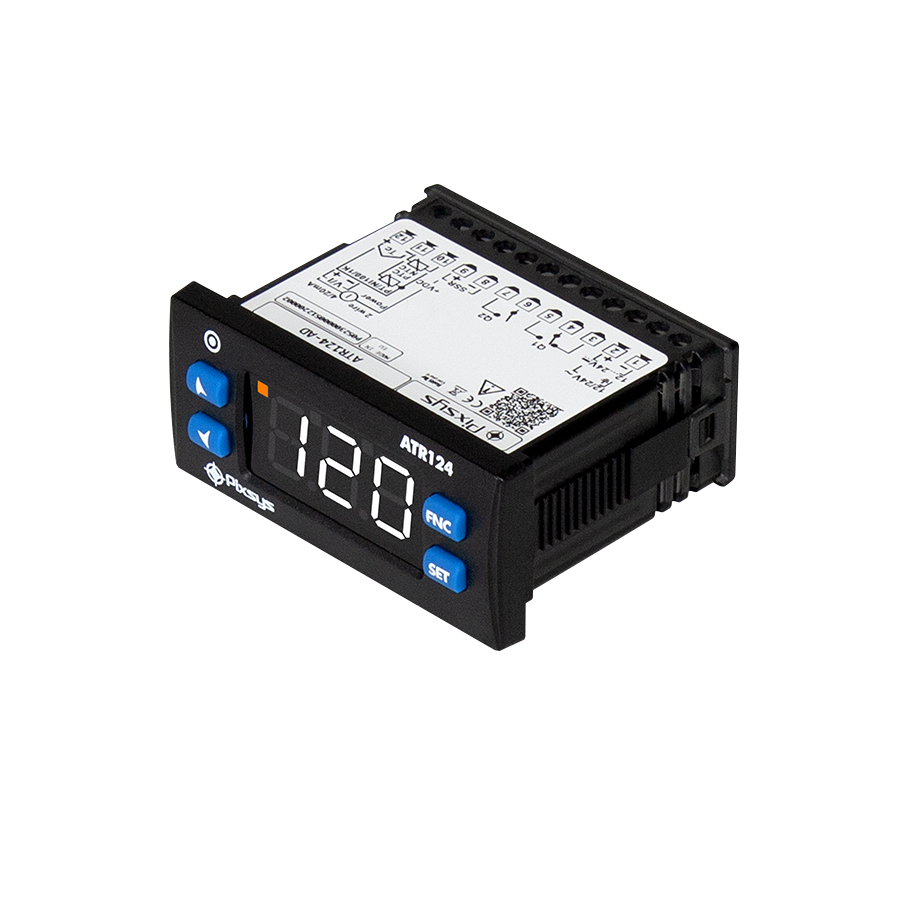

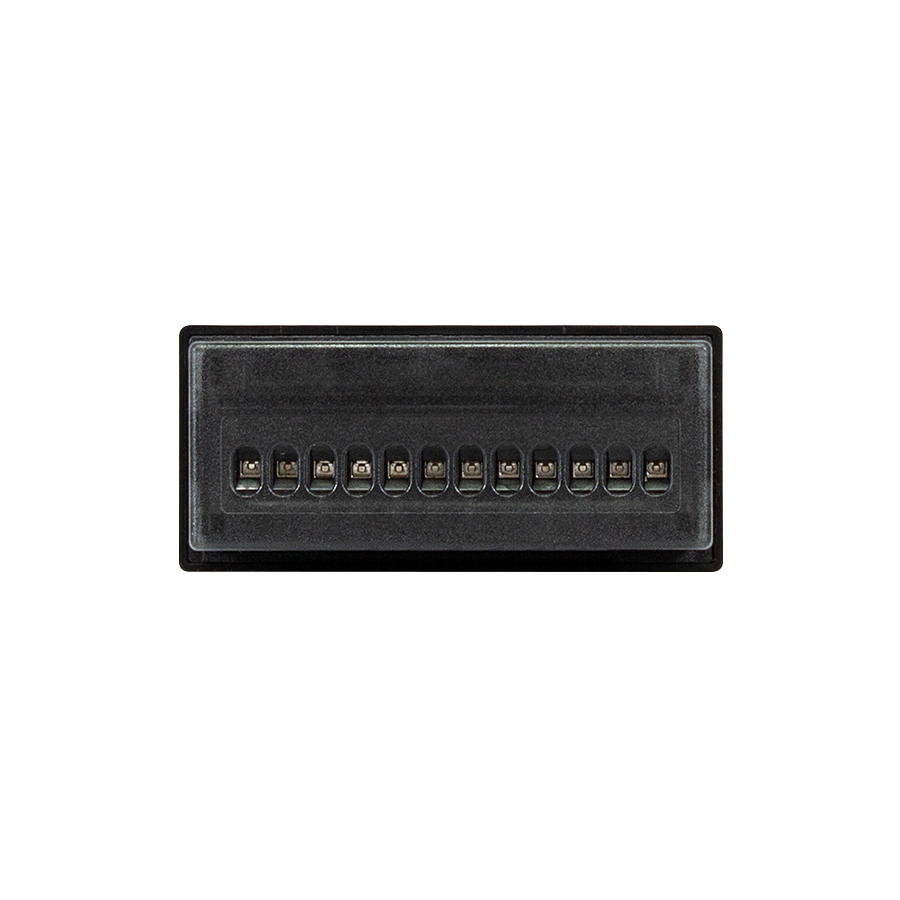

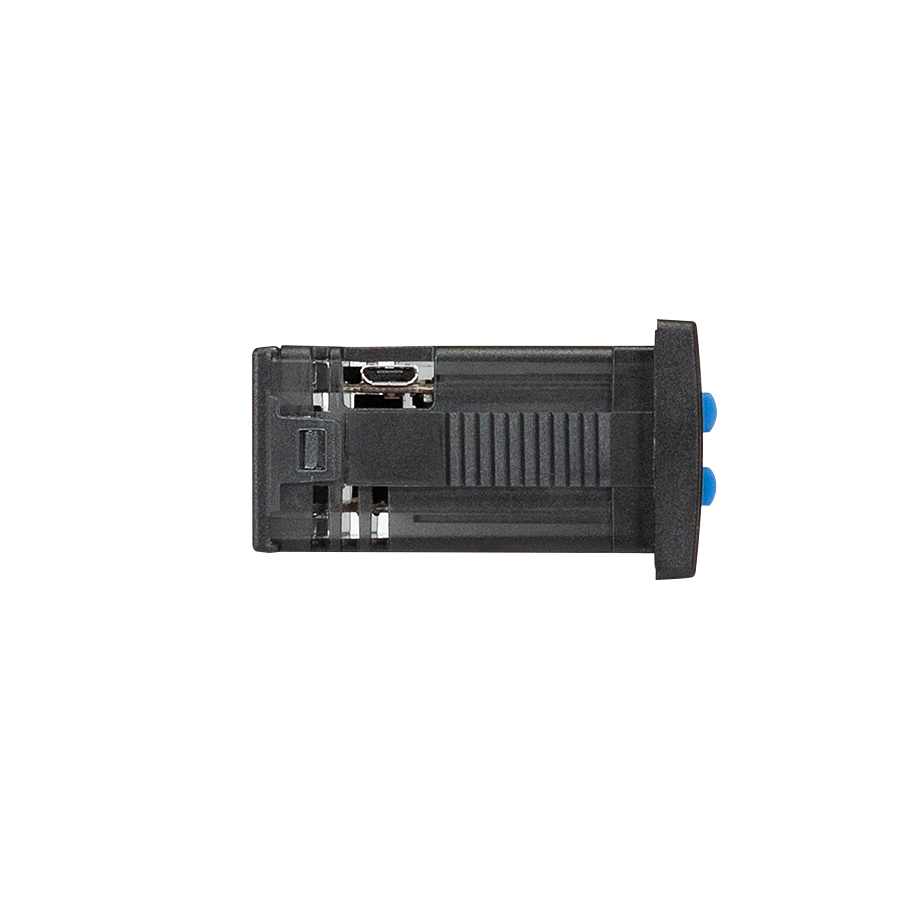

ATR124 is a compact PID controller and it is the entry-level model in the Blue Line series, of which it shares all the distinctive features starting with programming via NFC/RFID.
Analogue input is programmable for a wide range of temperature probes and mA/Volt process signals.
The digital/relay outputs are programmable either as ON/OFF control or as control with PID algorithm, but multiple alarm modes (threshold, band, deviation) are also selectable.
RS485 communication serial and Modbus RTU/ Slave protocol are the network communication options.
The version with extended range 24....230V AC/DC power supply ensures great flexibility in the event of fluctuations in the power grid and optimizes stock management as a single code can cover multiple power supply types.
ATR124 can also be considered as the new generation of the ATR121 series.
- Dimensions32 x74 x 53mm
- MaterialBox: PC UL94V2 self-extinguishing, front panel: PC UL94V2
- WeightApprox. 120 g
- SealingFront panel: IP65, Enclosure+ terminal blocks: IP20
- Operating conditionsTemperature 0-45 °C, humidity 35..95 RH%
- CertificationsCE, UL
| ORDERING CODES | ATR124-ABC | ATR124-AD | ATR124-ABC-T | ATR124-AD-T |
|---|---|---|---|---|
| Power Supply | 24...230VAC/DC ±15% 50/60 Hz | 12..24 VAC/VDC ±10% 50/60 Hz | 24..230 VAC/VDC ±15% 50/60 Hz | 12..24 VAC/VDC ±10% 50/60 Hz |
| Power consumption | 5 Watt/VA | 4,5 Watt/VA | 5 Watt/VA | 4,5 Watt/VA |
| Display | Display 3 digits 0,56" white + signalizing LEDs | |||
| Analogue inputs | 1x 16bit, programmable for thermocouples K, J, S, R, T (automatic compensation of cold junction 0..50°C, precision @25°C ±0,2% F.S. or ±1 digit), Thermoresistance PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA (40000 points), 0..10V (54000 points), 0..40mV, 0..60mV Potentiometers F.S. 1...150Kohm (50000 points). | |||
| Sampling time | Programmable up to 2,1 ms (frequency up to 470 Hz) | Programmable up to 2,1 ms (frequency up to 470 Hz) | Programmable up to 2,1 ms (frequency up to 470 Hz) | Programmable up to 2,1 ms (frequency up to 470 Hz) |
| Digital outputs | 1 x 12 V, 25 mA. | 1 x 12 V, 25 mA. | 1 x 12 V, 25 mA. | 1 x 12 V, 25 mA. |
| Relays outputs | 2 x 5 A - 250 VAC | 2 x 5 A - 250 VAC | 1 x 5 A - 250 VAC | 1 x 5 A - 250 VAC |
| Serial communication | - | - | RS485 (1200..115200 Baud) galvanically isolated | RS485 (1200..115200 Baud) galvanically isolated |
- Control algorithmsON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional
- TuningManual or automatic
- Alarm modeAbsolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset
- Dual P.I.D.Heating / Cooling dual P.I.D.
- Open / Close logicsMotorized valves control
- Software parameter configurationSoftware MyPixsysLab, App MyPixsys
- Data protectionLock of Command/Alarm Setpoints - Access to parameters by Password
- ATR124-ADCONTROLLER DOUBLE SETPOINT 32x74 3 digit 1AI-1DO-2RELAYS 12..24VAC/DC
- ATR124-ABCCONTROLLER DOUBLE SETPOINT 32x74 3 digit 1AI-1DO-2RELAY 24...230VAC/DC
- ATR124-AD-TCONTROLLER DOUBLE SETPOINT 32x74 3 digit 1AI-1DO-1RELAY-RS485 12...24VAC/DC
- ATR124-ABC-TCONTROLLER DOUBLE SETPOINT 32x74 3 digit 1AI-1DO-1RELAYS-RS485 24...230VAC/DC
