Pixsys vectorial inverters PDR200can be easily adapted to wide range of applications for process control and electrical motors control.
Distinctive features like built-in EMC filters, safety function STO (Safe Torque Off) and capability to integrate basic PLC logics make these inverters ideal also for high-performance applications.
Programming and start-up are simplified by integrated LCD panel, with dedicated function keys and the possibility to copy/duplicate frequently used configurations by means of the external programmer (code PDR-OPT-COPY).
Serial port RS485 with protocol Modbus RTU is always available for a simple and cost-effective drive control. Optional boards are available for other field buses CAN Open, Modbus TCP, Ethernet IP, PROFINET, Profibus DP.
They are mapped into the device catalogue of LogicLab, the programming tool for Pixsys PLCs and HMIs to facilitate integration into projects.
- Supply (Input)380..480V AC 50/60 Hz Trifase
- Supply (Output)Triphase 0..input V AC - Output frequency: 0.01~400Hz (IM Sensorless: 0.01~120Hz)
- Control panelLED Keypad
- EMC filterEMC type C3
- Operating conditionsTemperature -10..50 °C, humidity 95 RH%
- SealingIP20
- CertificationsCE, UL
|

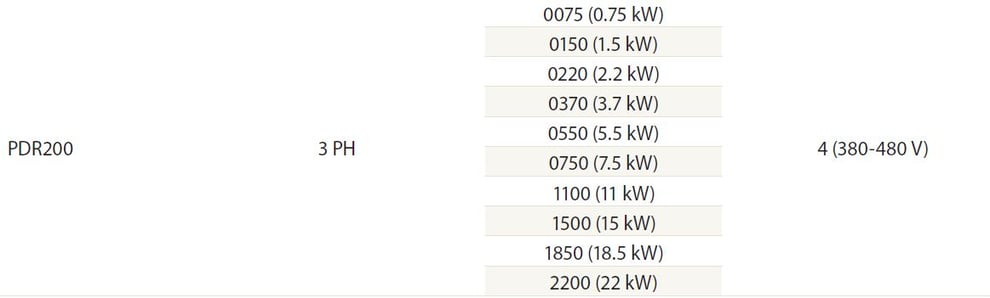

ORDERING CODES |
|
|---|---|
|
Digital inputs |
5 x settable PNP or NPN, 1 x pulse train 12V/0..32KHz (overlapped to digital input) |
|
Analogue inputs |
1 x potentiometer, 1 x 0..10 V, 1 x 0..10V/4..20mA |
|
Security input |
1 x input for STO functionality (3-wire) |
|
Digital inputs |
1 x relais (1 NC/NO) 250V AC/1A max, 1 x Open Collector 26V DC/100mA max / impulse train 12V/0..32KHz |
|
Analogue outputs |
1 x 0..10V/4..20mA |
|
Fieldbus |
RS485 Modbus RTU protocol integrated (on terminal block), optional board for CANOpen, Ethernet IP, Modbus TCP, PROFINET and Profibus DP |
- Control algorithmVectorial sensorless open-loop control with load/motor autotuning
- Input frequency resolution0.01 Hz (by Keypad), 0.06 Hz by analogue input
- Output frequency resolution1% of max output frequency
- Control/regulation functionsQuick lock on motor frequency, Control of motor direction reversal, Quick change of output frequency, Jog function, DC braking, PID control, Advanced energy saving functions Automatic search of motor speed, Motor surcharge protection
- Torque boostManual / Automatic up to 200% - starting from 0.5Hz
- Safety function STOAccording to EN ISO 13849-1 PLd and EN 61508 SIL2 (En 60204-1, stop category 0).
- PLC functionsPLC code with advanced function blocks ready to use
- PDR200-3PH-0075-43x380-480VAC; 0.75kW-2.5A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-0150-43x380-480VAC; 1.5kW-4A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-0220-43x380-480VAC; 2.2kW-5.5A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-0370-43x380-480VAC; 4kW-8A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-0550-43x380-480VAC; 5.5kW-12A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-0750-43x380-480VAC; 7.5kW-16A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-1100-43x380-480VAC; 11kW-24A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-1500-43x380-480VAC; 15kW-30A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-1850-43x380-480VAC; 18.5kW-39A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- PDR200-3PH-2200-43x380-480VAC; 22kW-45A HD; IP20; STO EMC FILTER C3; LED KEYPAD; MODBUS RTU
- ACCESSORIES' CODES
- PDR-OPT-COPYExternal programmer LCD
